Connector End View (C340) - INLINE
InlineC340
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

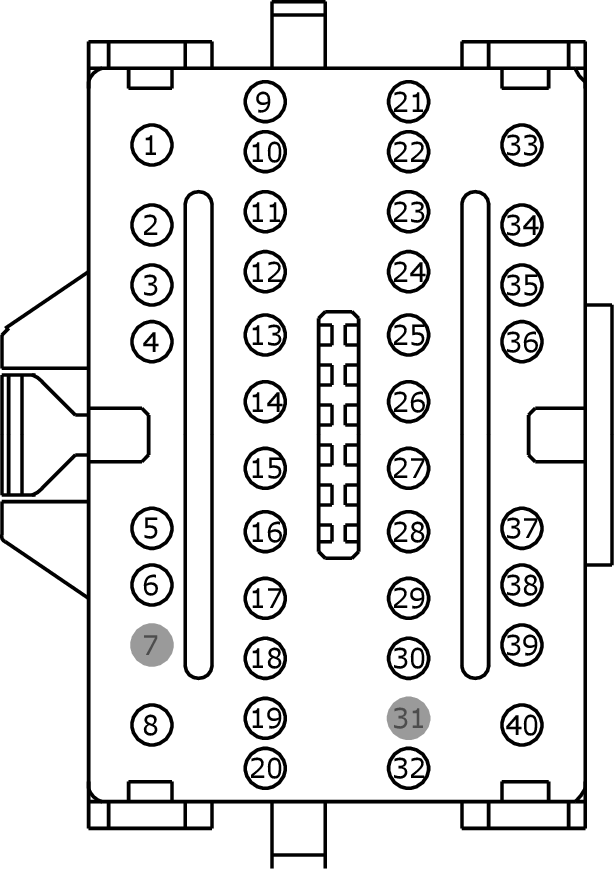

MALE
Harness 14B079

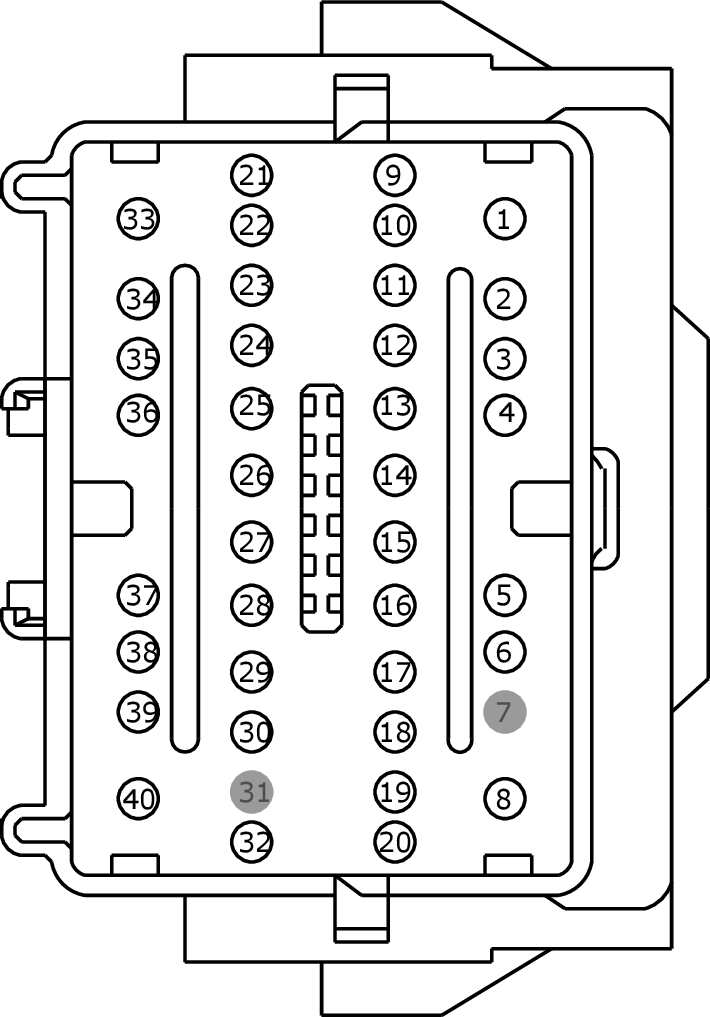

FEMALE
Harness 14401
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
DME45 (*) |
20 |
|
|
2 |
GD214 (BK-BU) |
22 |
|
|
3 |
CCB20 (BU-WH) |
20 |
14401 |
|
3 |
CCB20 (BU-WH) |
22 |
|
|
4 |
CCB21 (GN-VT) |
20 |
14401 |
|
4 |
CCB21 (GN-VT) |
22 |
|
|
5 |
LYA03 (YE-VT) |
22 |
|
|
6 |
RYA03 (BU-BN) |
22 |
|
|
7 |
* |
* |
|
|
8 |
DME88 (*) |
20 |
|
|
9 |
VPK05 (BN) |
26 |
14401 |
|
9 |
VPK05 (BN-GN) |
22 |
|
|
10 |
RPK05 (YE) |
26 |
14401 |
|
10 |
RPK05 (YE-OG) |
22 |
|
|
11 |
VME45 (BU) |
26 |
|
|
12 |
RME45 (YE) |
26 |
14401 |
|
12 |
RME45 (YE) |
26 |
|
|
12 |
RME45 (YE-GN) |
26 |
|
|
13 |
VME46 (BU-WH) |
26 |
14B079 |
|
13 |
VME46 (GN) |
26 |
14401 |
|
14 |
RME46 (GN) |
26 |
14B079 |
|
14 |
RME46 (WH) |
26 |
14401 |
|
15 |
VME88 (BU-WH) |
26 |
|
|
15 |
VME88 (WH) |
26 |
14B079 |
|
16 |
RME88 (GN) |
26 |
14401 |
|
16 |
RME88 (GN-WH) |
26 |
14B079 |
|
17 |
CCB22 (BN) |
26 |
14401 |
|
17 |
CCB22 (WH) |
26 |
14B079 |
|
17 |
CCB22 (WH-BN) |
20 |
14401 |
|
17 |
CET82 (GN) |
26 |
14B079 |
|
17 |
CET82 (GN-VT) |
20 |
14401 |
|
18 |
CCB23 (VT) |
26 |
|
|
18 |
CCB23 (VT-GN) |
20 |
14401 |
|
18 |
CET83 (BU-OG) |
20 |
14401 |
|
18 |
CET83 (BU-OG) |
26 |
14B079 |
|
19 |
CCB24 (OG) |
26 |
14B079 |
|
19 |
CCB24 (WH) |
26 |
14401 |
|
19 |
CCB24 (WH-OG) |
20 |
14401 |
|
19 |
GD383 (BK) |
26 |
14B079 |
|
19 |
GD383 (BK-WH) |
20 |
14401 |
|
20 |
CCB25 (BN) |
20 |
14401 |
|
20 |
CCB25 (BN) |
22 |
|
|
21 |
LME89 (YE-BU) |
22 |
|
|
22 |
CBX07 (GN) |
26 |
14401 |
|
22 |
CBX07 (GN-RD) |
22 |
|
|
22 |
CBX07 (RD) |
26 |
|
|
23 |
HYA01 (OG-GN) |
18 |
|
|
23 |
HYA01 (OG-GN) |
20 |
14401 |
|
24 |
HYA02 (OG-WH) |
18 |
|
|
24 |
HYA02 (OG-WH) |
20 |
14401 |
|
25 |
GD214 (BK-BU) |
22 |
14B079 |
|
25 |
GD214 (BK-WH) |
22 |
14401 |
|
26 |
CH253 (BN-WH) |
26 |
14B079 |
|
26 |
CH253 (WH) |
26 |
14401 |
|
27 |
CE469 (BN) |
26 |
|
|
28 |
CMP18 (GN) |
26 |
14401 |
|
28 |
CMP18 (GN-BN) |
22 |
14401 |
|
28 |
CMP18 (GN-WH) |
26 |
14B079 |
|
29 |
CMP02 (BU) |
26 |
|
|
30 |
CMP32 (GN) |
22 |
14401 |
|
30 |
CMP32 (GN) |
26 |
14B079 |
|
31 |
* |
* |
14401 |
|
31 |
CMP31 (VT-WH) |
26 |
14B079 |
|
32 |
VDN07 (WH) |
22 |
14401 |
|
32 |
VDN07 (WH-VT) |
22 |
|
|
33 |
VLN04 (BU-WH) |
22 |
14401 |
|
33 |
VLN04 (VT-GY) |
22 |
|
|
33 |
VLN37 (BU-WH) |
22 |
14B079 |
|
34 |
SBB10 (YE-RD) |
16 |
|
|
35 |
SBB16 (VT-RD) |
16 |
|
|
36 |
SBB05 (GY-RD) |
16 |
|
|
37 |
GD214 (BK-BU) |
16 |
|
|
38 |
GD214 (BK-BU) |
16 |
|
|
39 |
GD214 (BK-BU) |
16 |
|
|
40 |
RME89 (WH-BU) |
22 |
