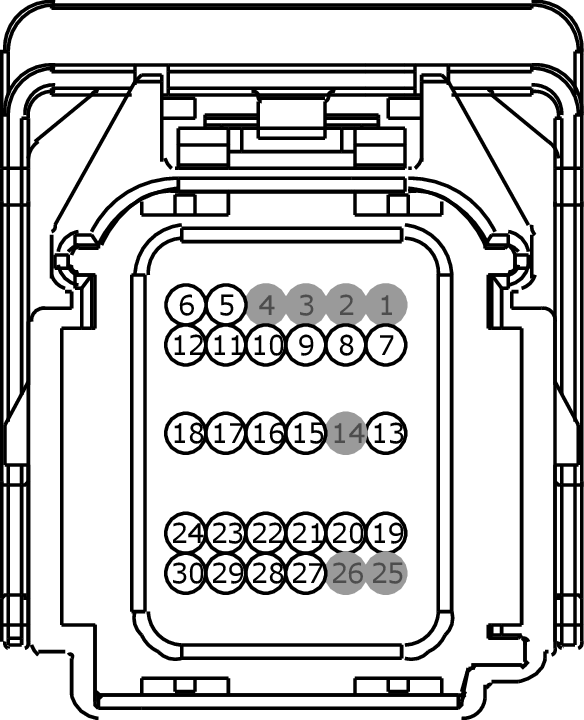

Connector End View (C310A) - RESTRAINTS CONTROL MODULE (RCM)

Pin

Circuit

Gauge

Circuit Function

Qualifier

1

*

*

Not Used

2

*

*

Not Used

3

*

*

Not Used

4

*

*

Not Used

5

CR139 (VT-WH)

20

CTRL MOD. - AIR BAG DRIVER KNEE +

6

RR139 (YE)

20

CTRL MOD. - AIR BAG DRIVER KNEE -

7

CR144 (GY-OG)

20

CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING +

8

RR144 (VT-GN)

20

CTRL MOD. - AIR BAG FRONT PASSENGER ADAPTIVE VENTING -

9

RR168 (BU-WH)

20

CTRL MOD. - PYROTECHNIC STEERING COLUMN -

10

CR168 (WH-GN)

20

CTRL MOD. - PYROTECHNIC STEERING COLUMN +

11

CR169 (VT)

20

CTRL MOD. - AIR BAG PASSENGER KNEE +

12

RR169 (GY-VT)

20

CTRL MOD. - AIR BAG PASSENGER KNEE -

13

CR116 (GN-WH)

22

CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE +

14

*

*

Not Used

15

RR130 (GN-BU)

20

CTRL MOD. - SENSOR IMPACT FRONT 2ND

16

VR214 (WH-BU)

20

SENSOR - IMPACT FRONT 2ND

17

VR213 (VT-GN)

20

SENSOR - IMPACT FRONT 1ST

18

RR129 (YE-GY)

20

CTRL MOD. - SENSOR IMPACT FRONT 1ST -

19

CBP35 (YE-GY)

22

FUSE - 35 OR CIRCUIT BREAKER

20

RR116 (BN-GN)

22

CTRL MOD. - INDICATOR PASSENGER AIR BAG DEACTIVATE -

21

RR102 (WH)

20

CTRL MOD. - AIR BAG DRIVER 2 -

22

CR102 (BU)

20

CTRL MOD. - AIR BAG DRIVER 2 +

23

CR104 (YE-GY)

20

CTRL MOD. - AIR BAG FRONT PASSENGER 2 +

24

RR104 (WH-BU)

20

CTRL MOD. - AIR BAG FRONT PASSENGER 2 -

25

*

*

Not Used

26

*

*

Not Used

27

RR103 (VT-GN)

20

CTRL MOD. - AIR BAG FRONT PASSENGER 1 -

28

CR103 (GY-BU)

20

CTRL MOD. - AIR BAG FRONT PASSENGER 1 +

29

CR101 (VT-BN)

20

CTRL MOD. - AIR BAG DRIVER 1 +

30

RR101 (YE-GN)

20

CTRL MOD. - AIR BAG DRIVER 1 -
