Connector End View (C1697) - COLD START FUEL VALVE
Connector:C1697
Description
COLD START FUEL VALVE
Color
Harness
9W340
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CE169 (BN-GN) |
20 |
CTRL MOD. - POWERTRAIN # COLD START FUEL CLUTCH VALVE (CSFCV) |
|
|
2 |
CBK03 (GY) |
20 |
FUSE - 12 OR CIRCUIT BREAKER |
|

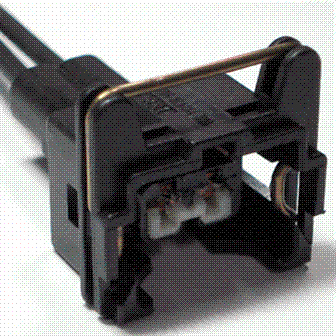

Available Pigtail Kits |
|
|
Pigtail Kit Part Number WPT-1054 |
Service Part Number: 3U2Z-14S411-GLB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Actuator - Turbocharger Waste Gate Fuel Injector Sensor - Cam Shaft Position Sensor - Crank Shaft Position Valve - Cold Start |
