Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C626 (Fusion) Passenger Door Exterior

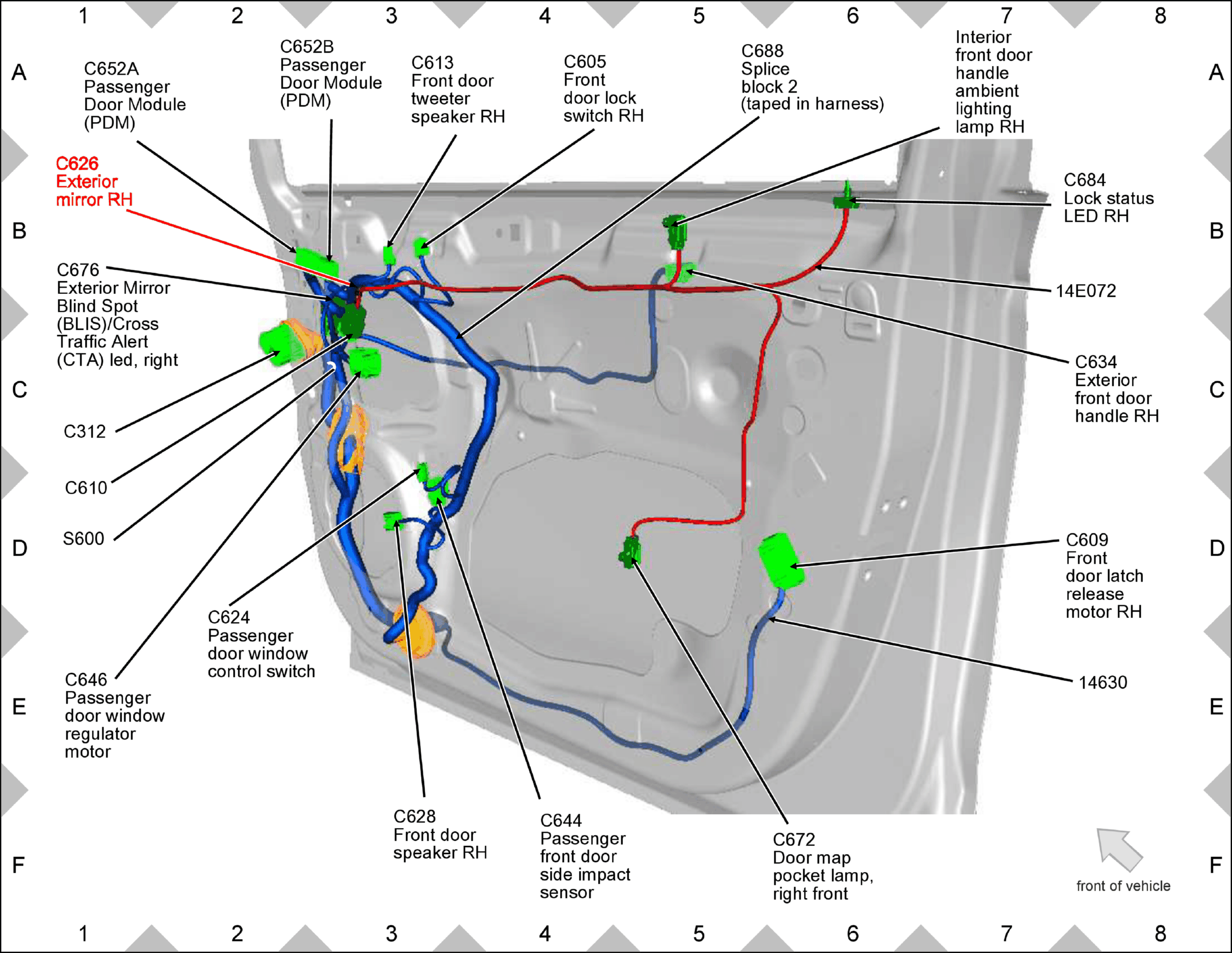

C626 (Fusion) Passenger Door Exterior

GFDW24179Courtesy of FORD MOTOR COMPANY
