Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C535 (Fusion) In Driver Door, On Armrest

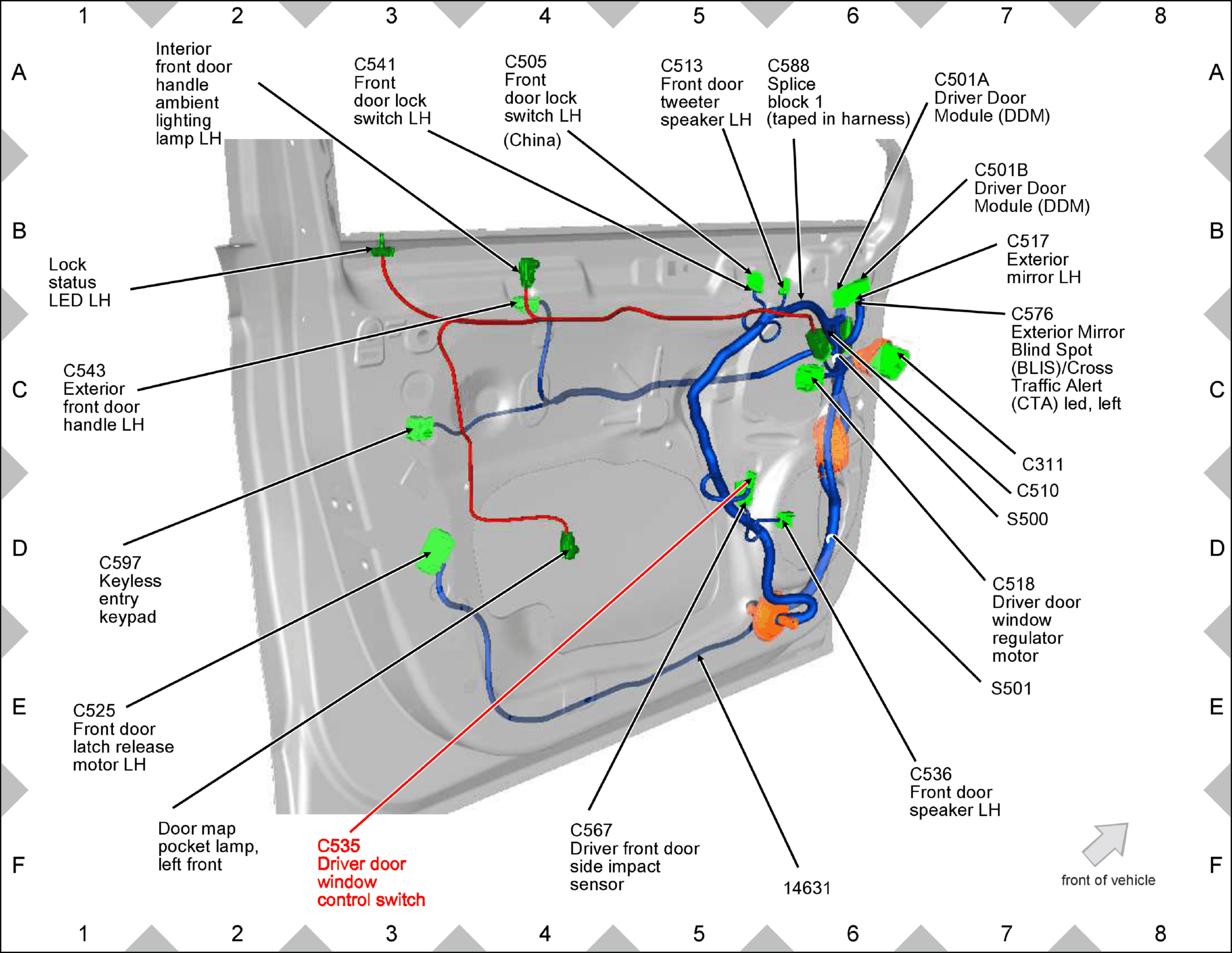

C535 (Fusion) In Driver Door, On Armrest

GFDW24152

Courtesy of FORD MOTOR COMPANY
