Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C4395 (Fusion) Rear Of Vehicle RH, Taped In Harness

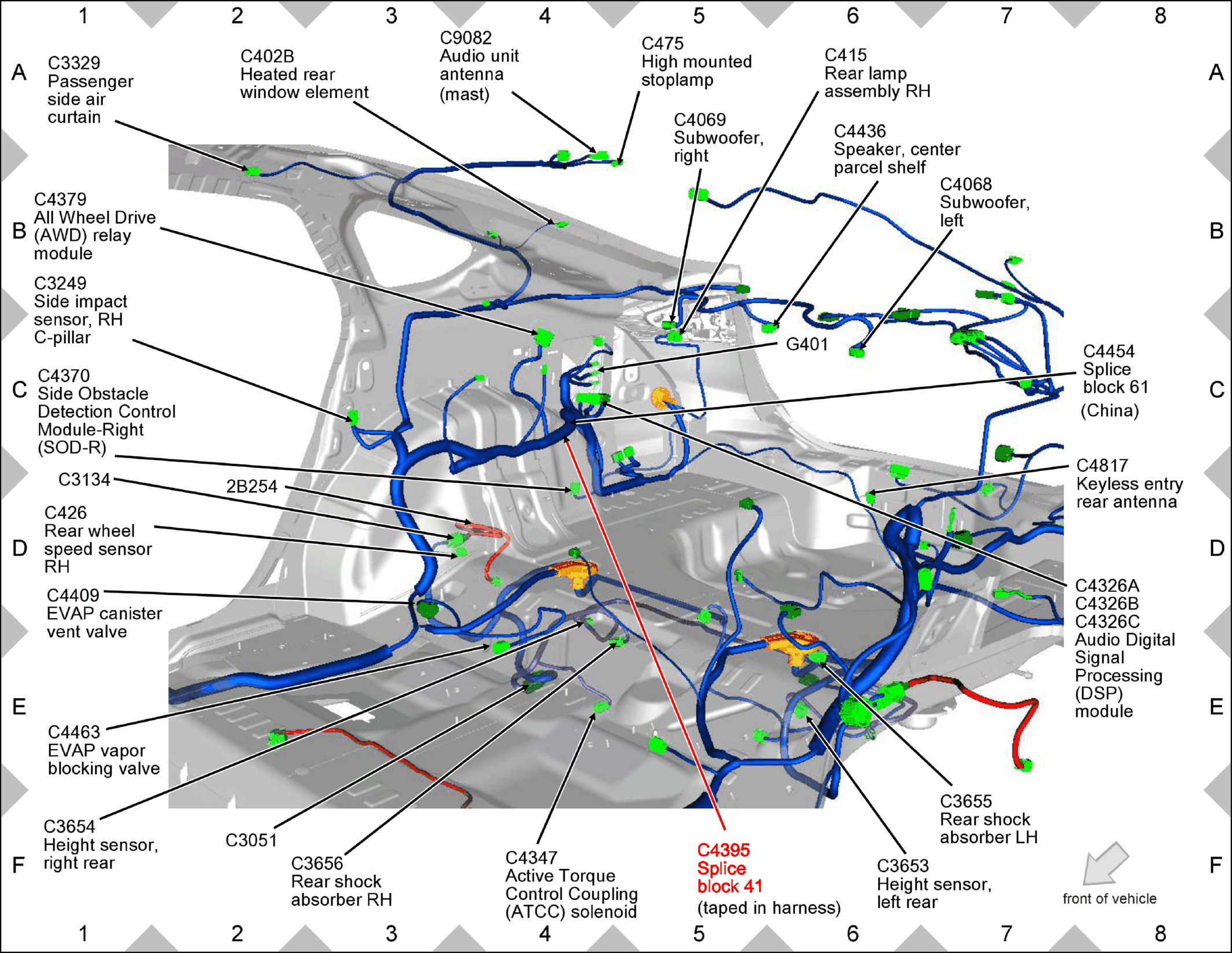

C4395 (Fusion) Rear Of Vehicle RH, Taped In Harness

GFDW24791

Courtesy of FORD MOTOR COMPANY
