Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C4371 (Fusion) Rear Of Vehicle LH, Taped In Harness

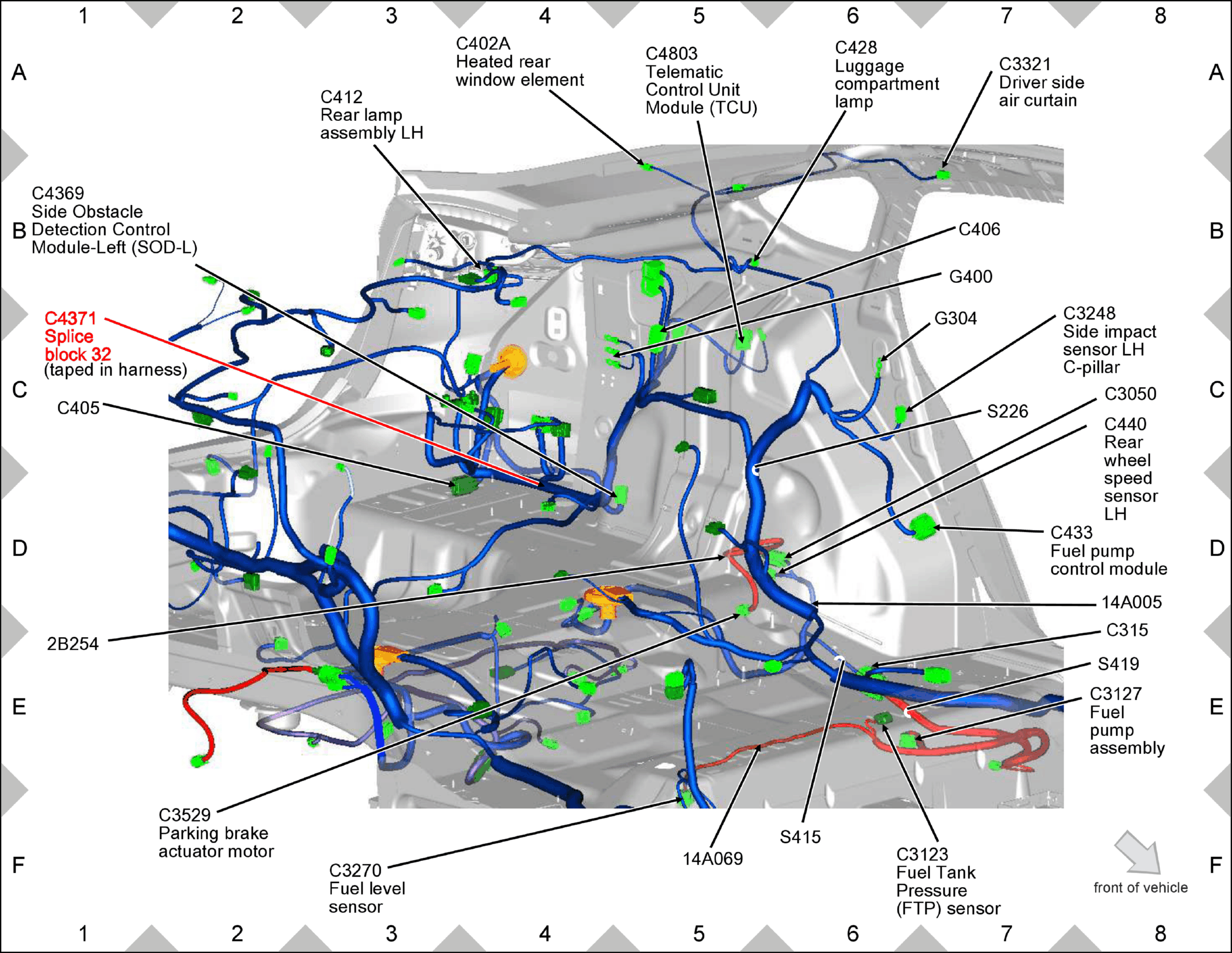

C4371 (Fusion) Rear Of Vehicle LH, Taped In Harness

GFDW24787

Courtesy of FORD MOTOR COMPANY
