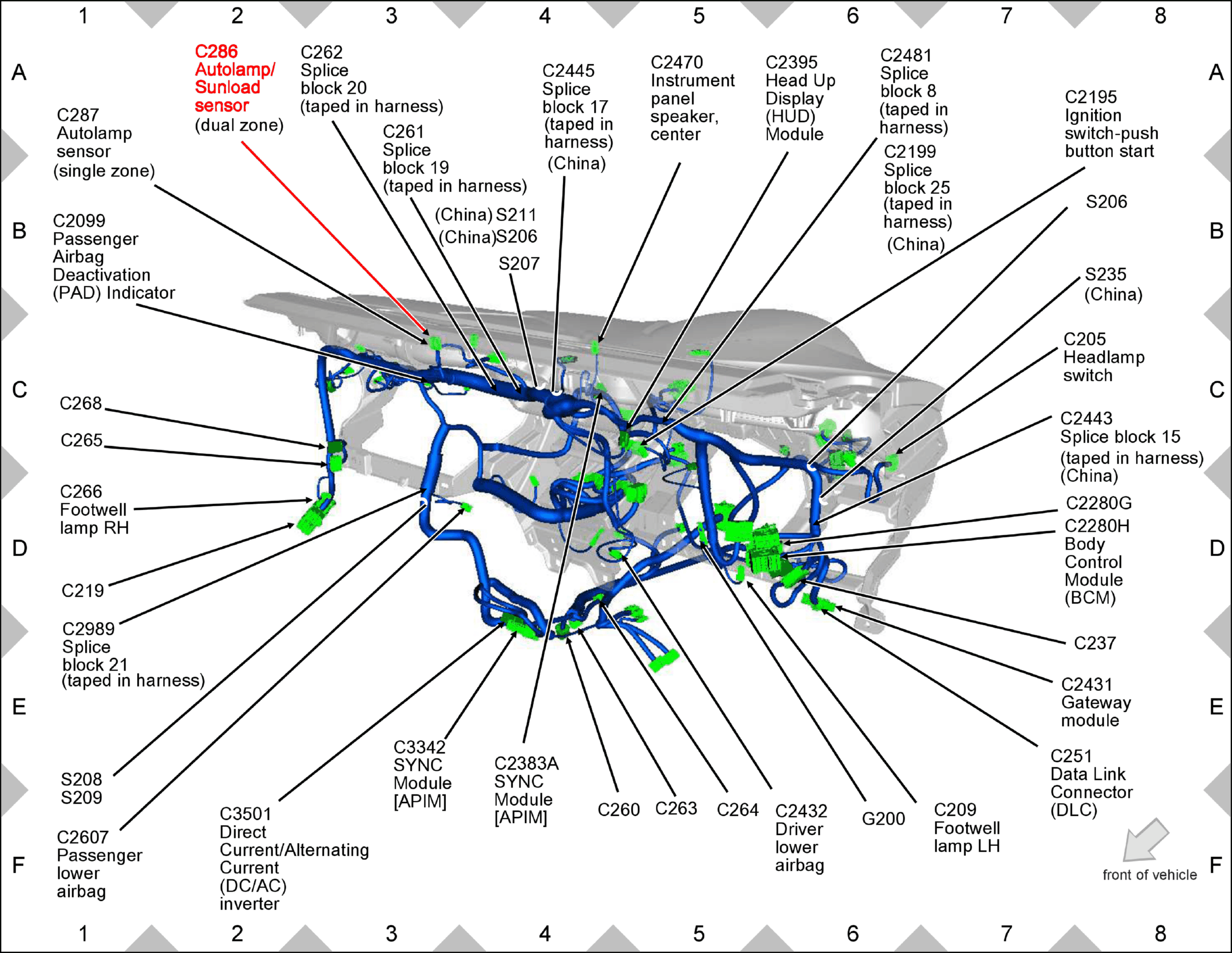

C286 (Fusion - Dual Zone A or C) Top Of Dash Panel, Center
C286 (Fusion - Dual Zone A or C) Top Of Dash Panel, Center
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
