Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C266 (Fusion) Under Dash Panel, Right Hand Side

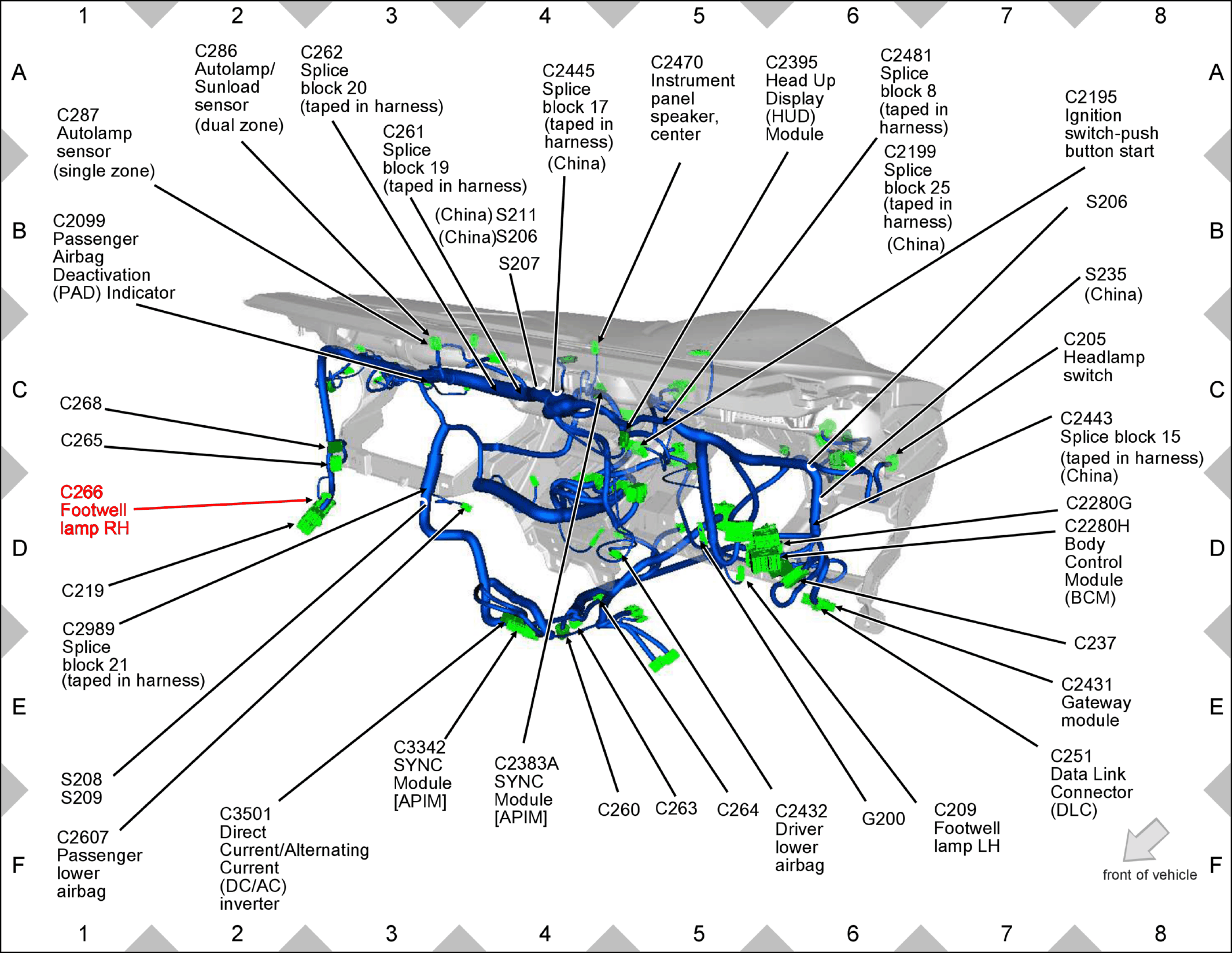

C266 (Fusion) Under Dash Panel, Right Hand Side

GFDW24045

Courtesy of FORD MOTOR COMPANY
