OEM Component Harness Location Charts (Except Hybrid/ENERGI)
>>
Component Location Charts
>>

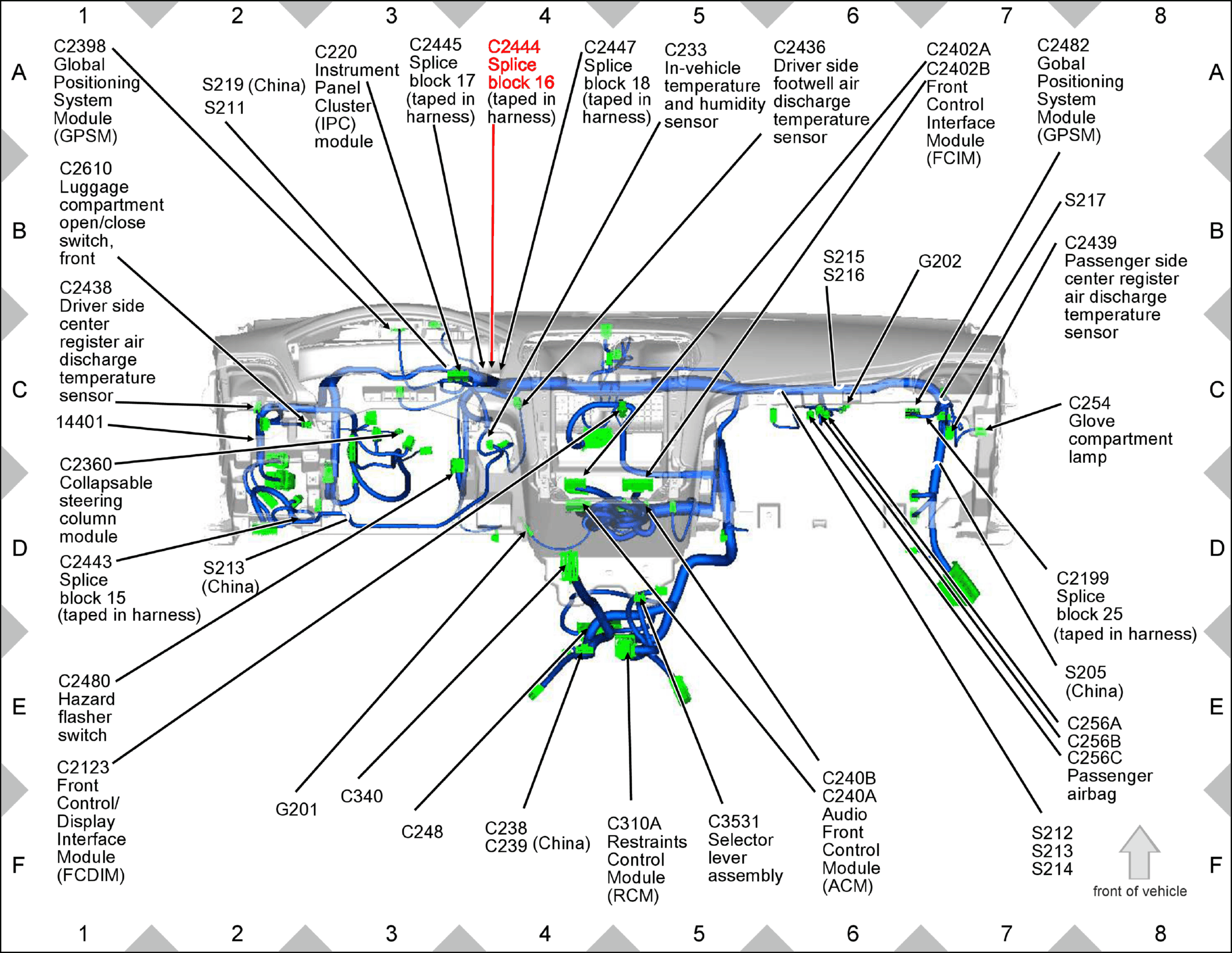

C2444 (Fusion) Behind Dash Panel, LH Side, Taped In Harness
C2444 (Fusion) Behind Dash Panel, LH Side, Taped In Harness
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
