Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C220 (Fusion) In Dash Panel, Above Steering Column

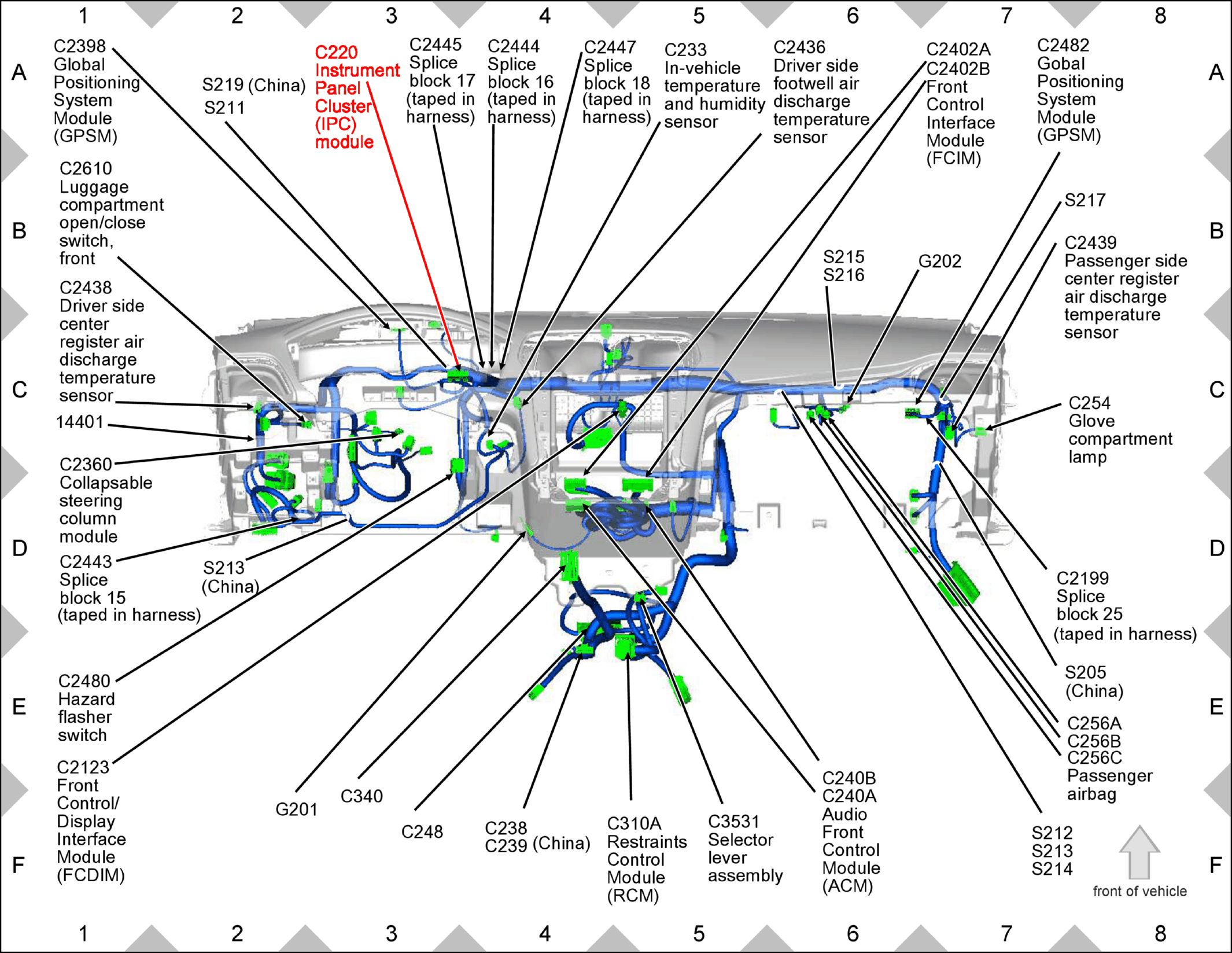

C220 (Fusion) In Dash Panel, Above Steering Column

GFDW24004

Courtesy of FORD MOTOR COMPANY
