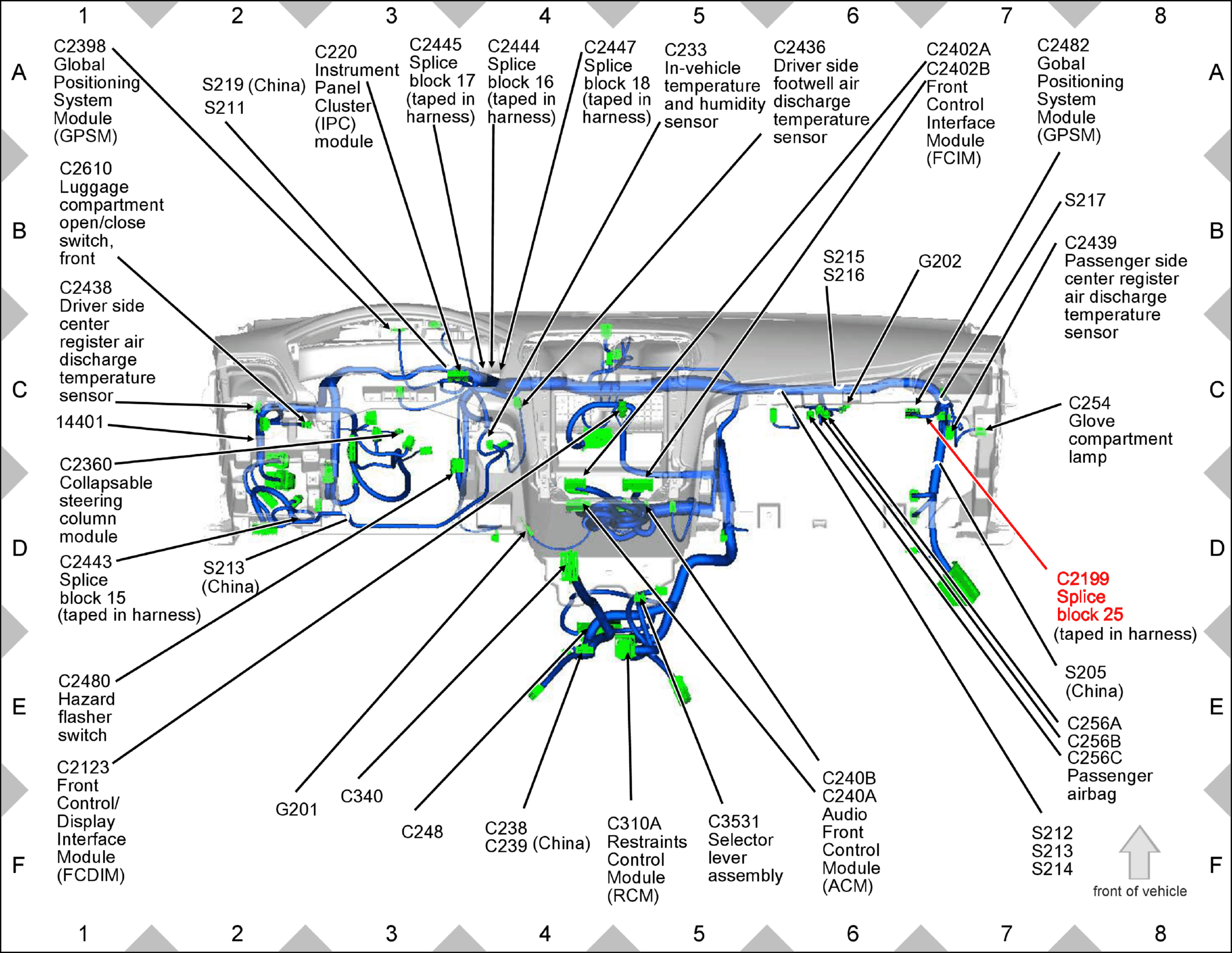

C2199 (Fusion) Instrument Panel (14401), In T or O to C2428

GFDW24541

Courtesy of FORD MOTOR COMPANY
