Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C2091 Behind Dash Panel, Left Of Center

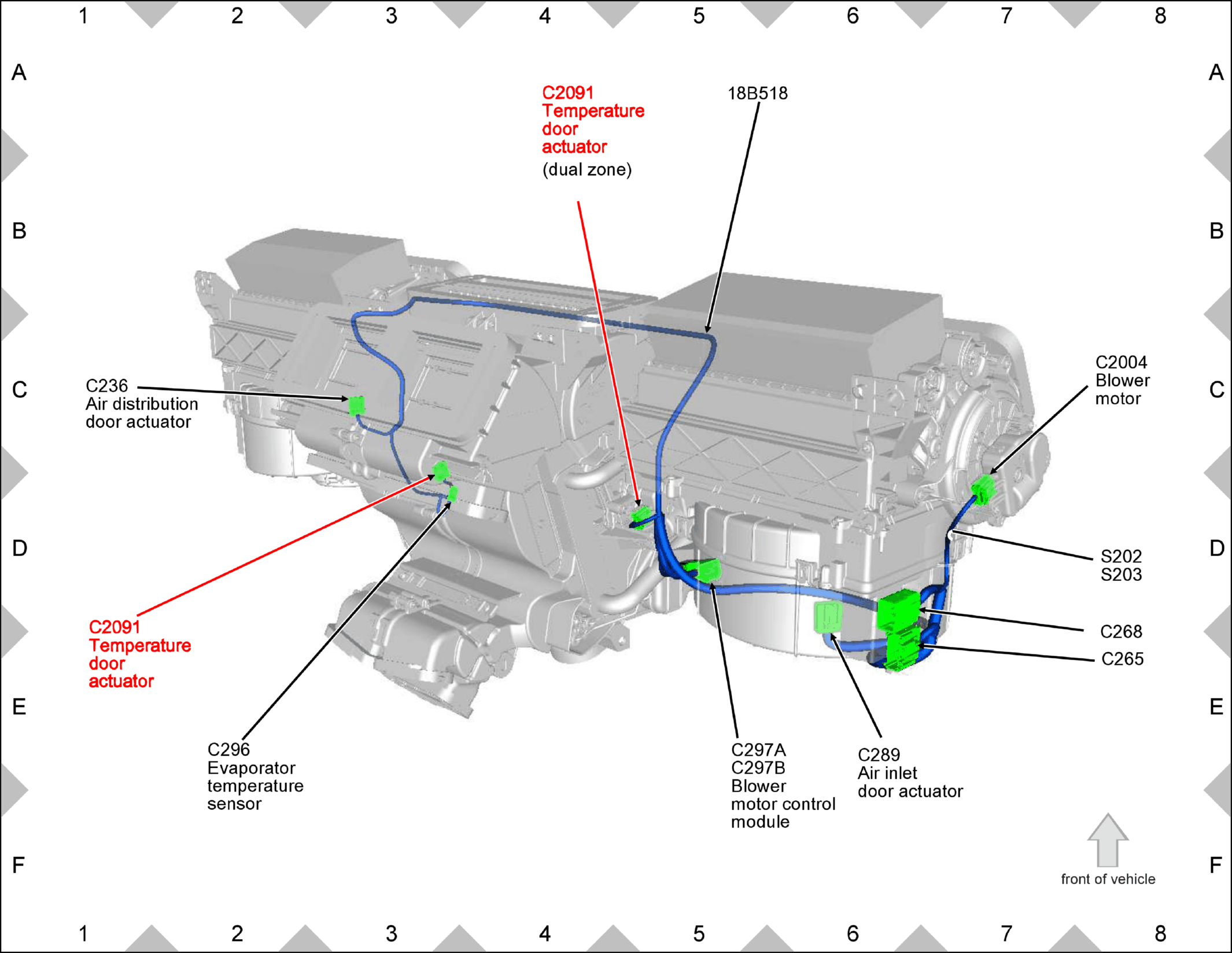

C2091 Behind Dash Panel, Left Of Center

GFDW24532

Courtesy of FORD MOTOR COMPANY
