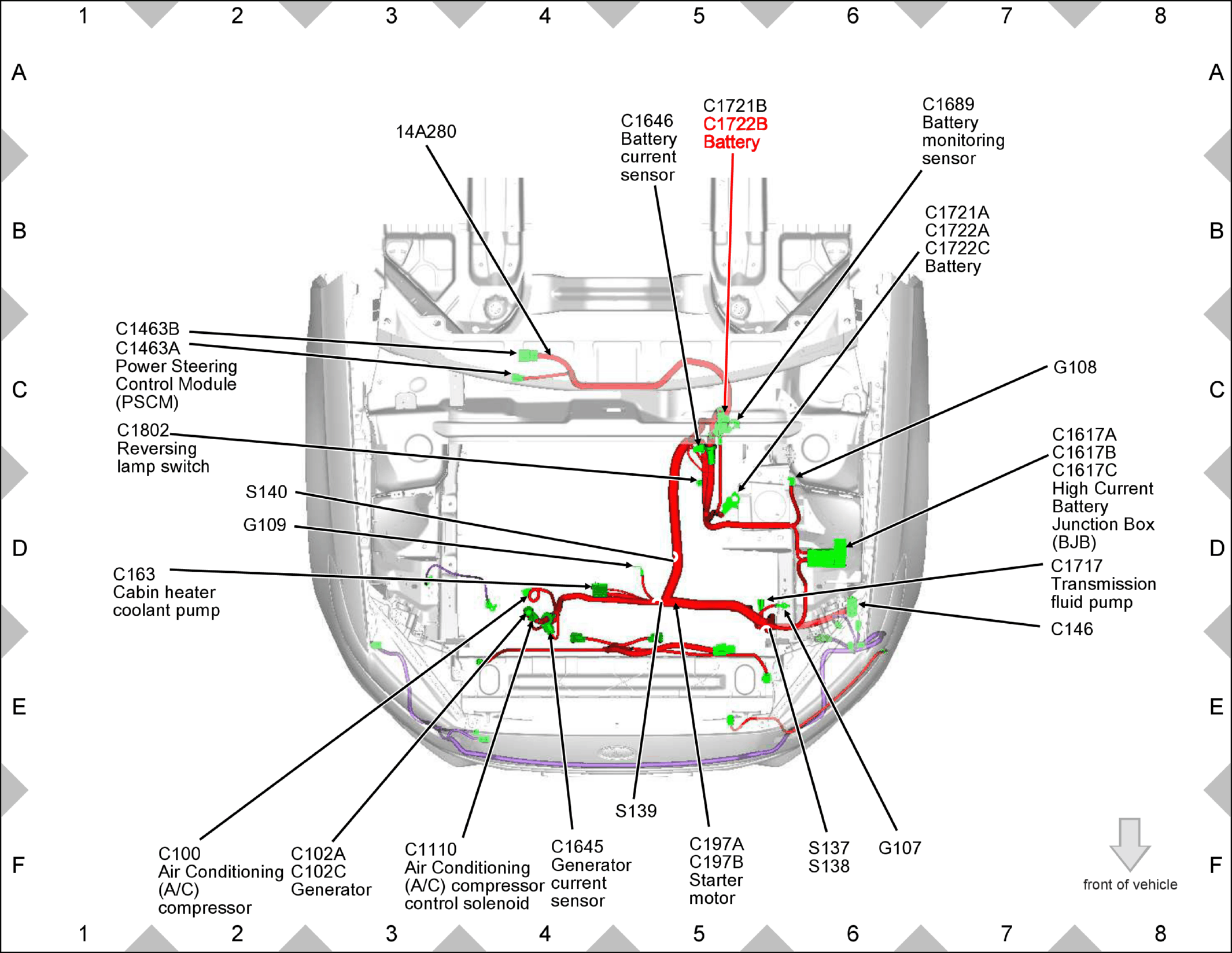

C1722B (with auto-start-stop) At Battery Negative Terminal

GFDW24502

Courtesy of FORD MOTOR COMPANY
