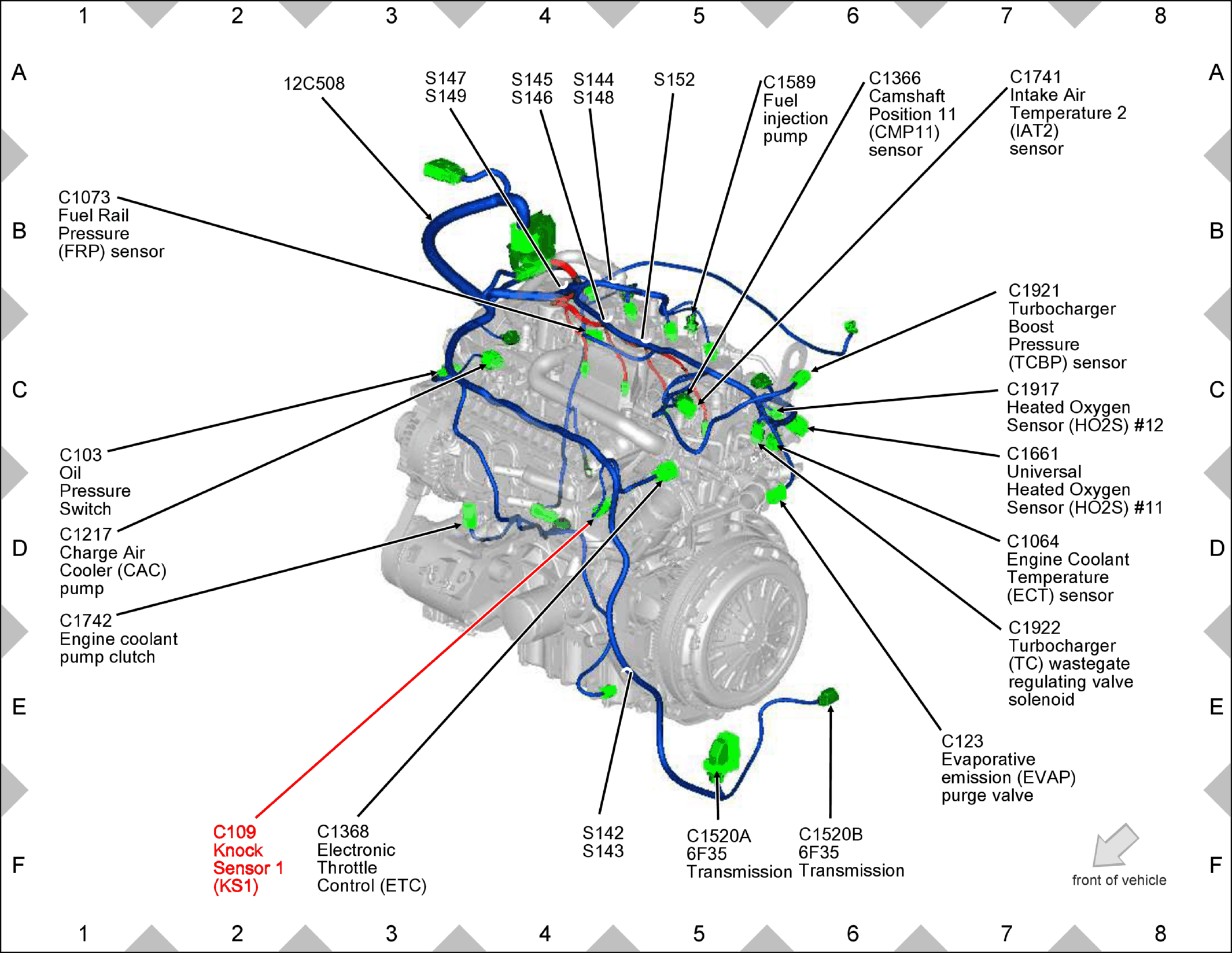

Home >> Ford >> 2015 >> Fusion Titanium, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Component Harness Location Charts (Except Hybrid/ENERGI) >> Component Location Charts >> C109 (1.5L) Front Of Engine LH
