Valve Stem Seals: Removal
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.
- 1.
Refer to: Valve Springs .
- 2.

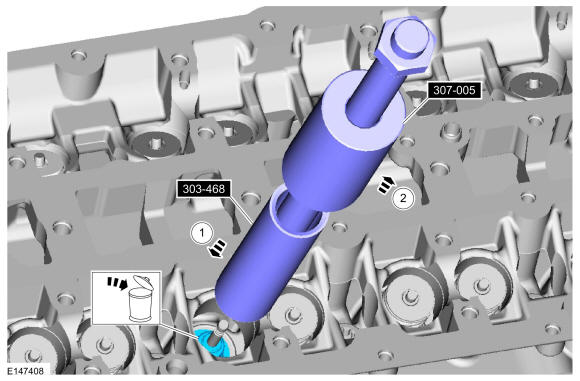

Use Special Service Tool: 303-468 (T94P-6510-AH) Remover, Valve Stem Oil Seal., 307-005 (T59L-100-B) Slide Hammer.
