Valve Cover: Installation

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

1.

NOTE: Installation of a new VCT solenoid seal is required if a damaged seal was removed during disassembly of the engine.

Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer., 205-153 (T80T-4000-W) Handle.

GFD70888

Courtesy of FORD MOTOR COMPANY

2.

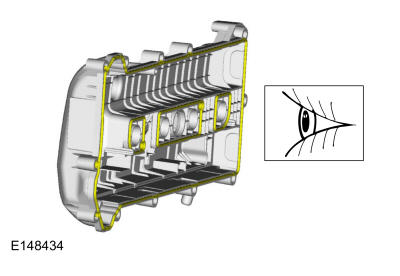

GFD70889

Courtesy of FORD MOTOR COMPANY

3.

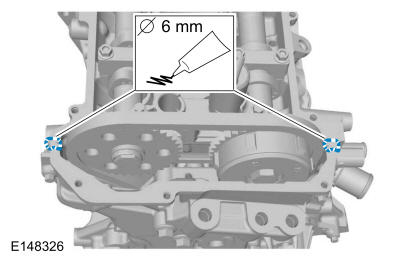

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

GFD70890

Courtesy of FORD MOTOR COMPANY

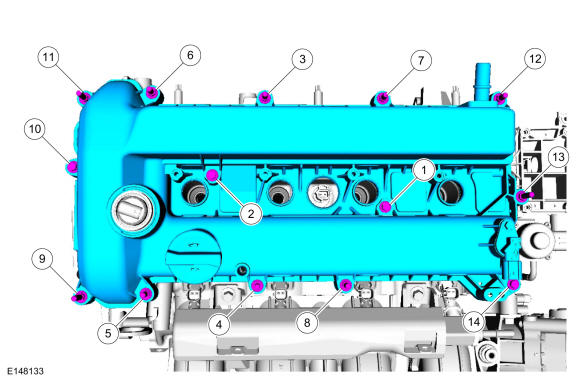

4.

Tighten in the sequence shown.
Torque: 89 lb.in (10 Nm)

Fig 1: Valve Cover Tightening Sequence

GFD70891

Courtesy of FORD MOTOR COMPANY

5.

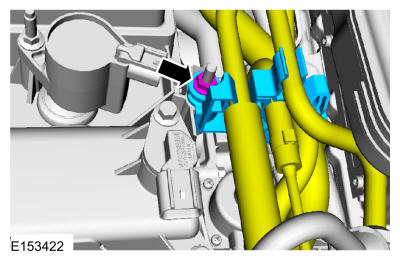

Torque: 89 lb.in (10 Nm)

GFD70885

Courtesy of FORD MOTOR COMPANY

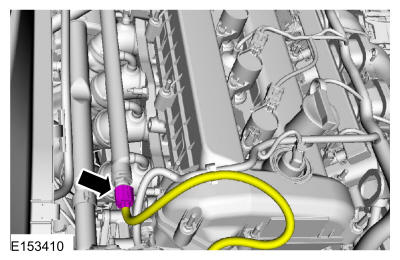

6.

GFD70884

Courtesy of FORD MOTOR COMPANY

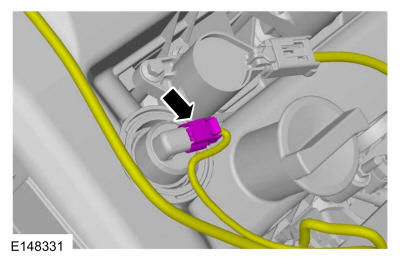

7.

GFD70882

Courtesy of FORD MOTOR COMPANY

8.

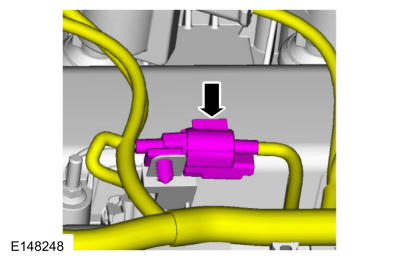

GFD70881

Courtesy of FORD MOTOR COMPANY

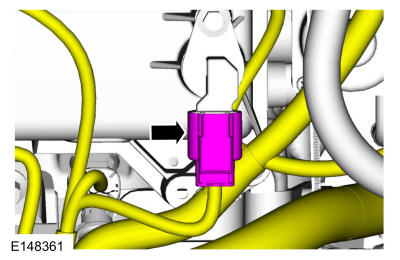

9.

GFD70883

Courtesy of FORD MOTOR COMPANY

10.

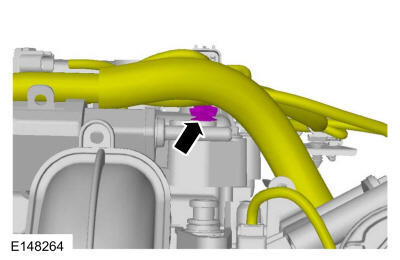

GFD70878

Courtesy of FORD MOTOR COMPANY

11.

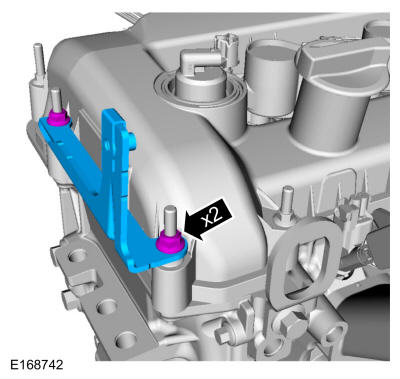

Torque: 89 lb.in (10 Nm)

GFD70880

Courtesy of FORD MOTOR COMPANY

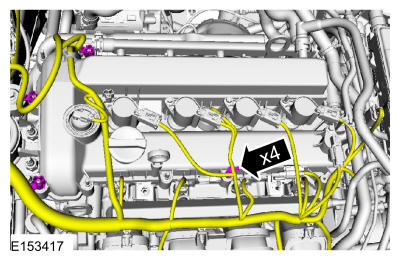

12.

GFD70879

Courtesy of FORD MOTOR COMPANY

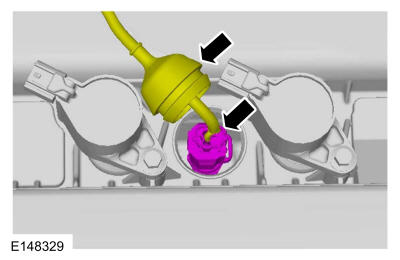

13.

GFD70877

Courtesy of FORD MOTOR COMPANY

14.

Refer to: Spring Lock Couplings .

GFD70876

Courtesy of FORD MOTOR COMPANY

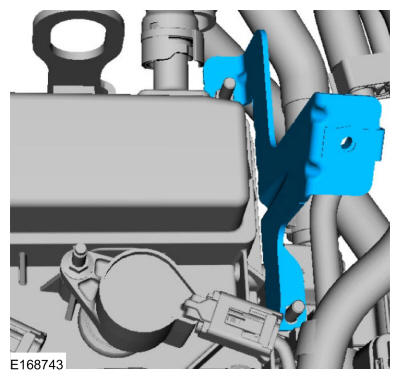

15.

GFD70875

Courtesy of FORD MOTOR COMPANY

16.

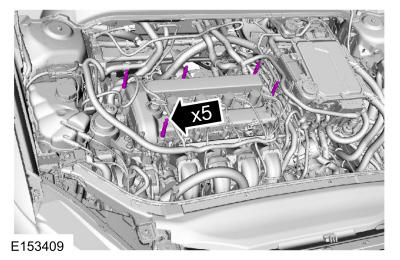

GFD70874

Courtesy of FORD MOTOR COMPANY

17.

Refer to: Ignition Coil-On-Plug .

18.

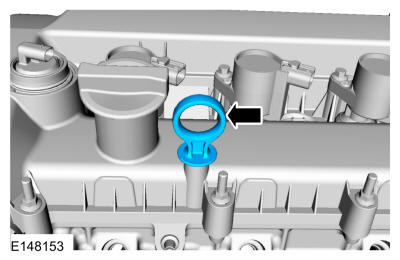

GFD70873

Courtesy of FORD MOTOR COMPANY

19.

Torque: 44 lb.in (5 Nm)

GFD70839

Courtesy of FORD MOTOR COMPANY

20.

Refer to: Air Cleaner Outlet Pipe . Refer to: Air Cleaner .
