Oil Pump: Installation

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

1.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Courtesy of FORD MOTOR COMPANY

2.

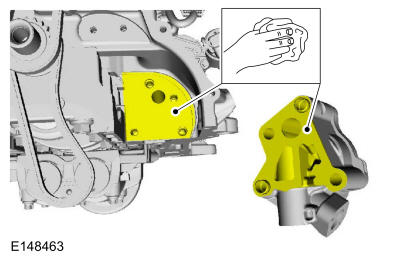

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

3.

Torque:
Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

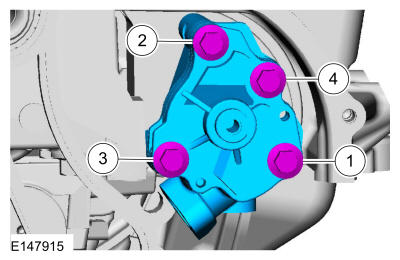

Fig 1: Oil Pump Tightening Sequence

Courtesy of FORD MOTOR COMPANY

4.

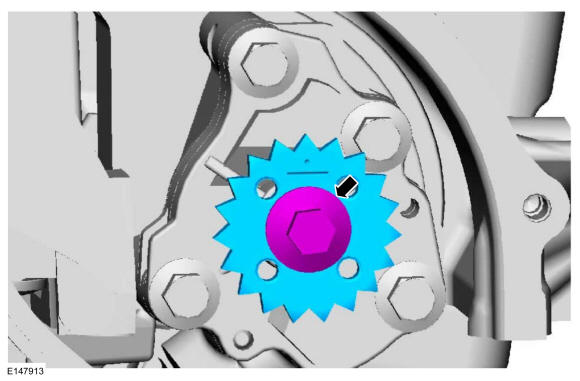

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

5.

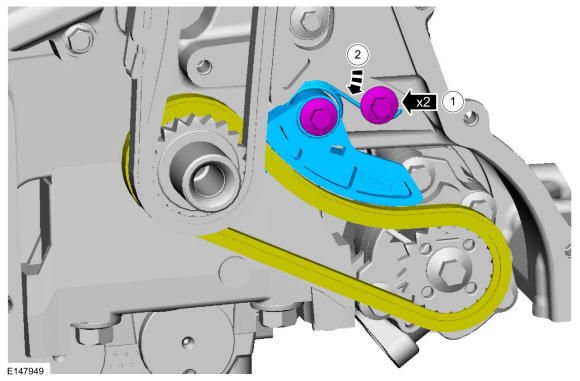

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

6.

Refer to: Oil Pump Screen and Pickup Tube .
