Oil Pan: Installation

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

1.

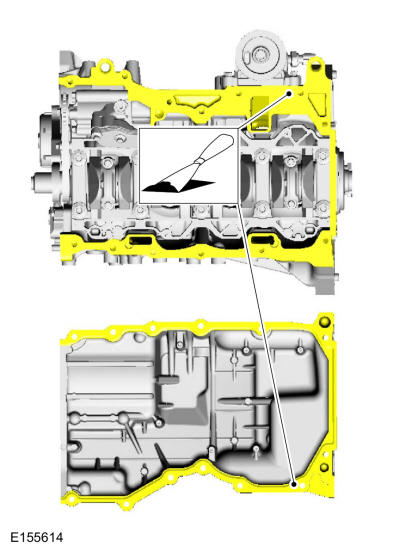

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Plastic scraper.

Courtesy of FORD MOTOR COMPANY

2.

NOTE: The component must be installed within 10 minutes of applying the sealant.

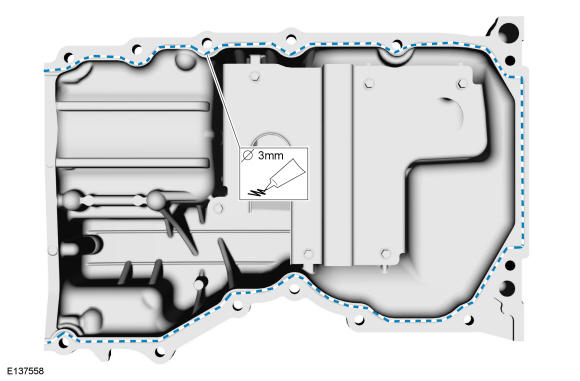

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

3.

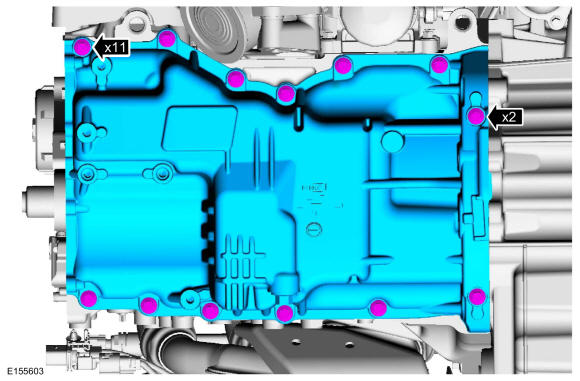

NOTE: Only tighten the bolts finger tight at this stage.

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Align the front surface of the oil pan flush with the front surface of the engine block.

Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY

5.

Torque: 177 lb.in (20 Nm)

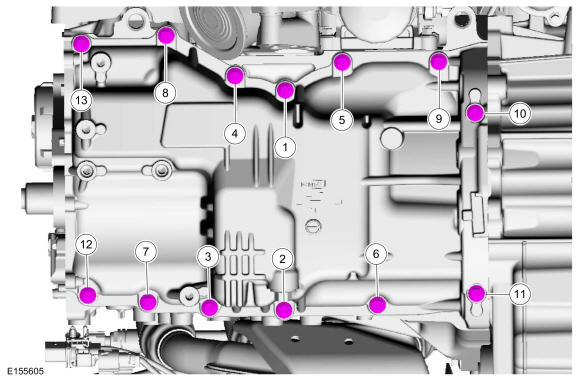

Fig 1: Oil Pan Tightening Sequence

Courtesy of FORD MOTOR COMPANY

6.

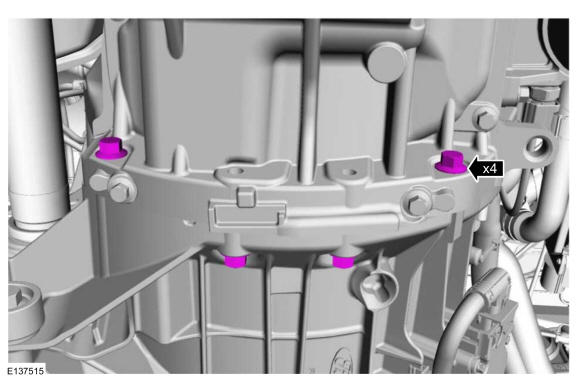

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

7.

Refer to: Engine Front Cover - Hybrid Electric Vehicle (HEV) . Refer to: Engine Front Cover - Plug-In Hybrid Electric Vehicle (PHEV) .

8.

Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
