Removal And Installation: Turbocharger: Installation

NOTE: Make sure that the mating faces are clean and free of foreign material.

1.

NOTE: Make sure that 4 new turbocharger-to-cylinder head studs, 4 new turbocharger nuts and a new turbocharger gasket are installed.

Install the TC and tighten the TC mounting nuts in the sequence shown.

Torque: 37 lb.ft (50 Nm)

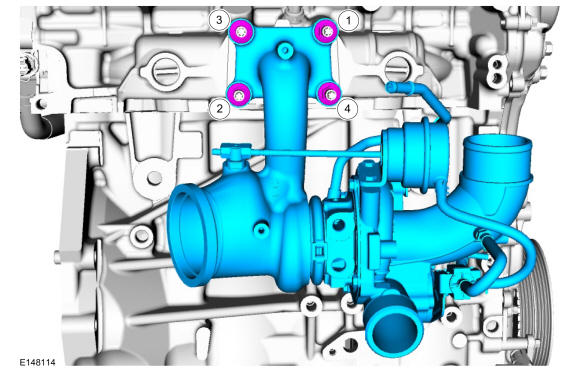

Fig 1: Turbocharger Tightening Sequence

GFD67669

Courtesy of FORD MOTOR COMPANY

2.

To install, reverse the removal procedure.
