System Diagram - Supplemental Restraint System (SRS)

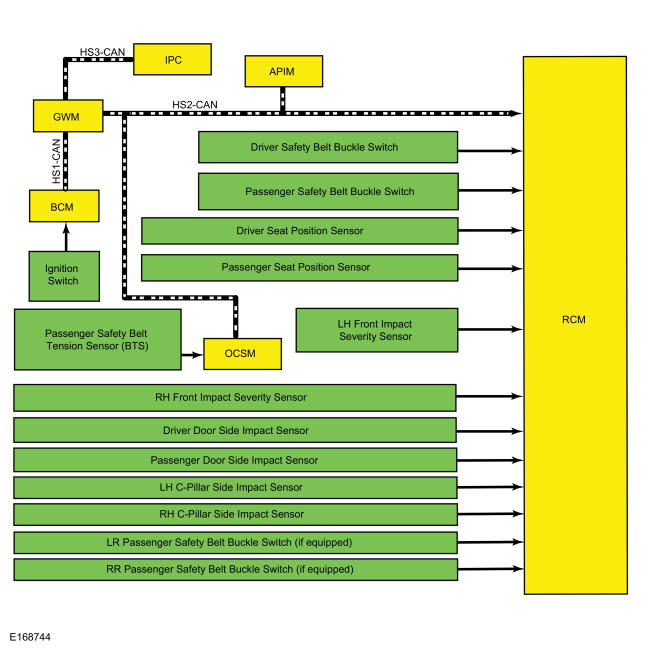

SRS Inputs

GFD72597

Courtesy of FORD MOTOR COMPANY

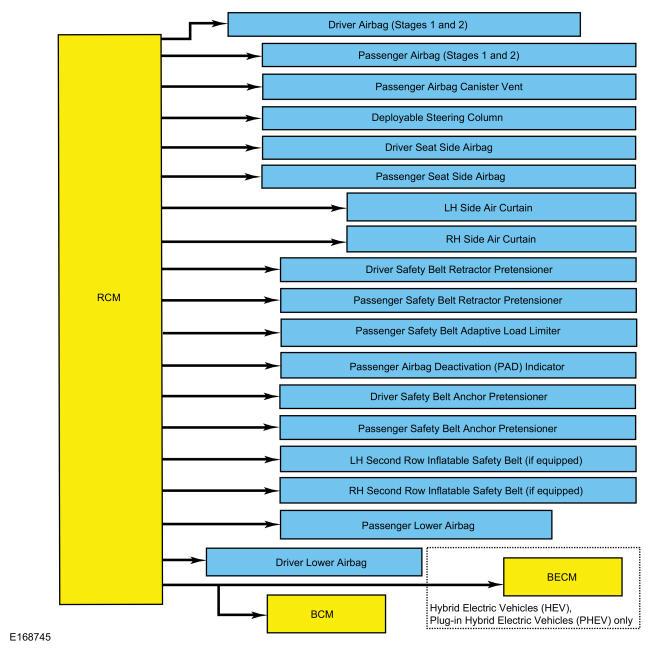

SRS Outputs

GFD72598

Courtesy of FORD MOTOR COMPANY
