OEM Wiring Diagram Symbols (Hybrid/ENERGI): Symbols

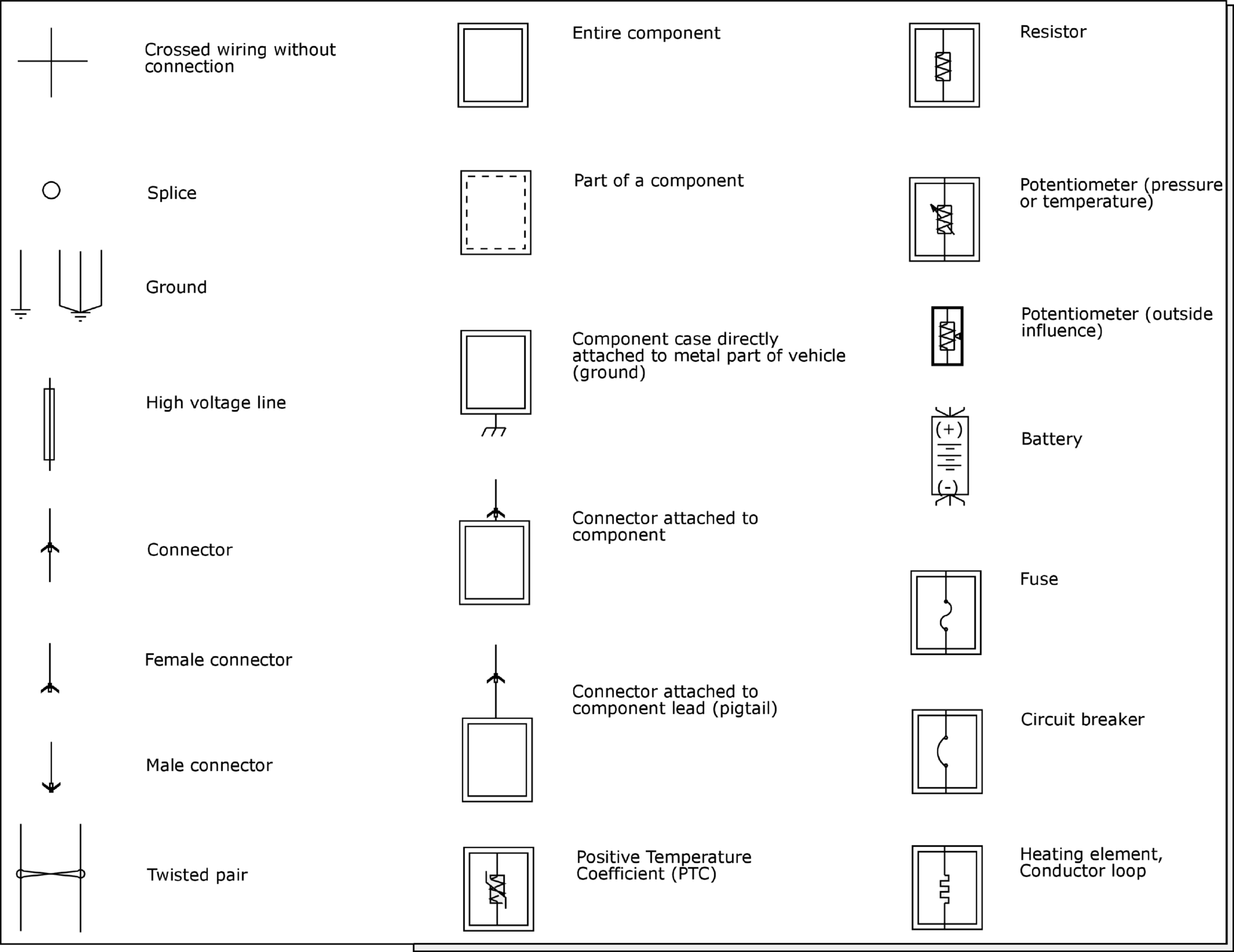

GFDW28258Courtesy of FORD MOTOR COMPANY

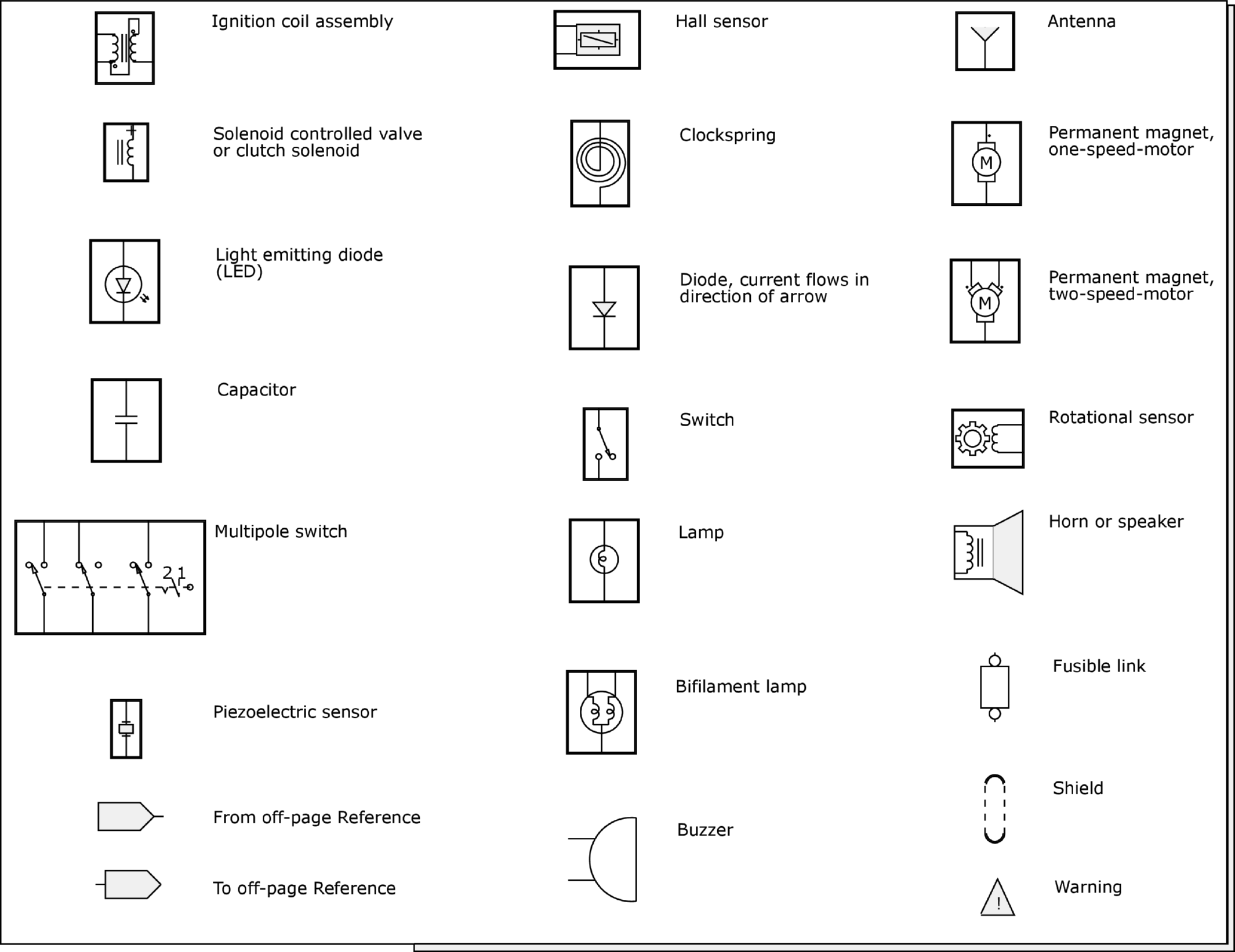

GFDW28259Courtesy of FORD MOTOR COMPANY

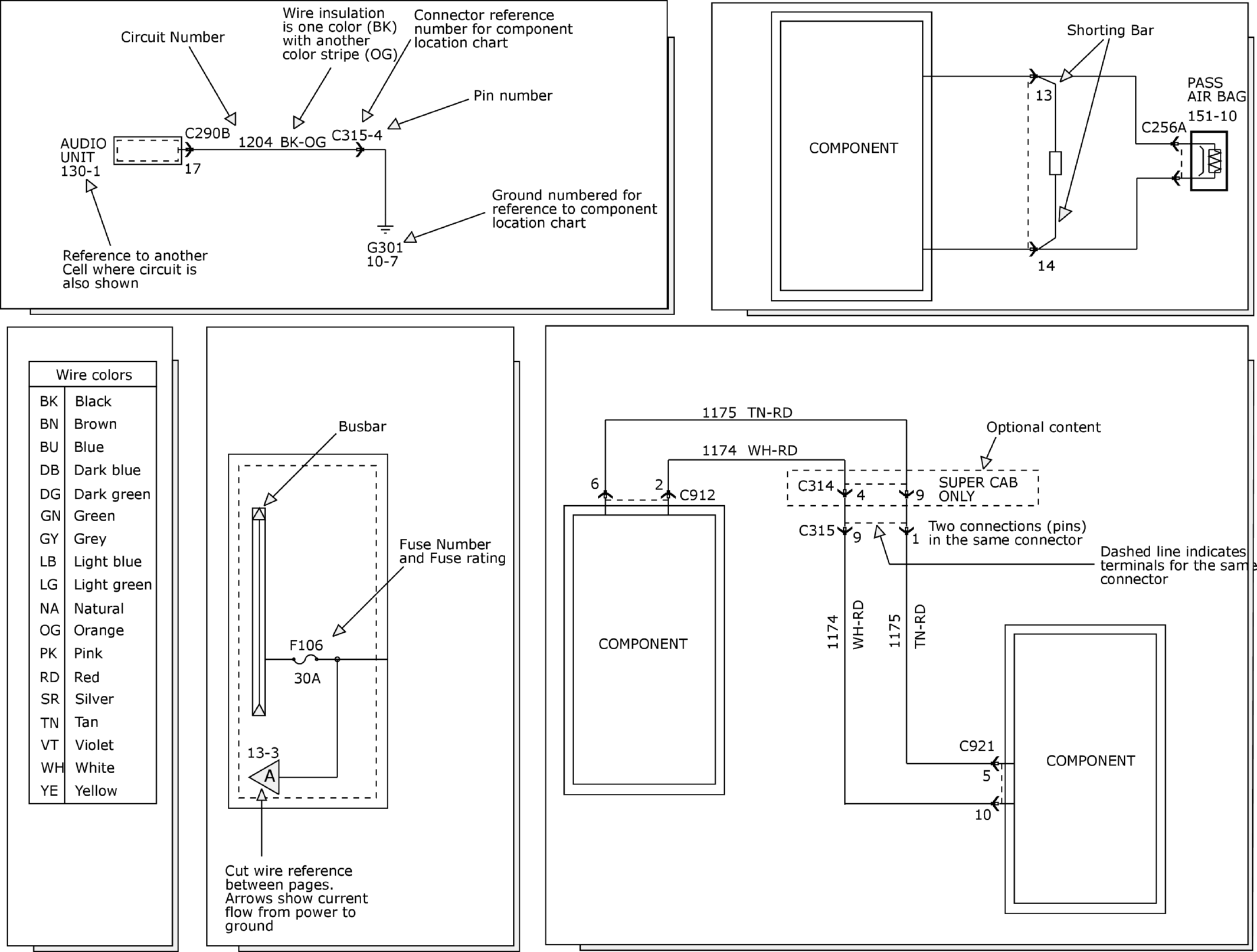

GFDW28260Courtesy of FORD MOTOR COMPANY

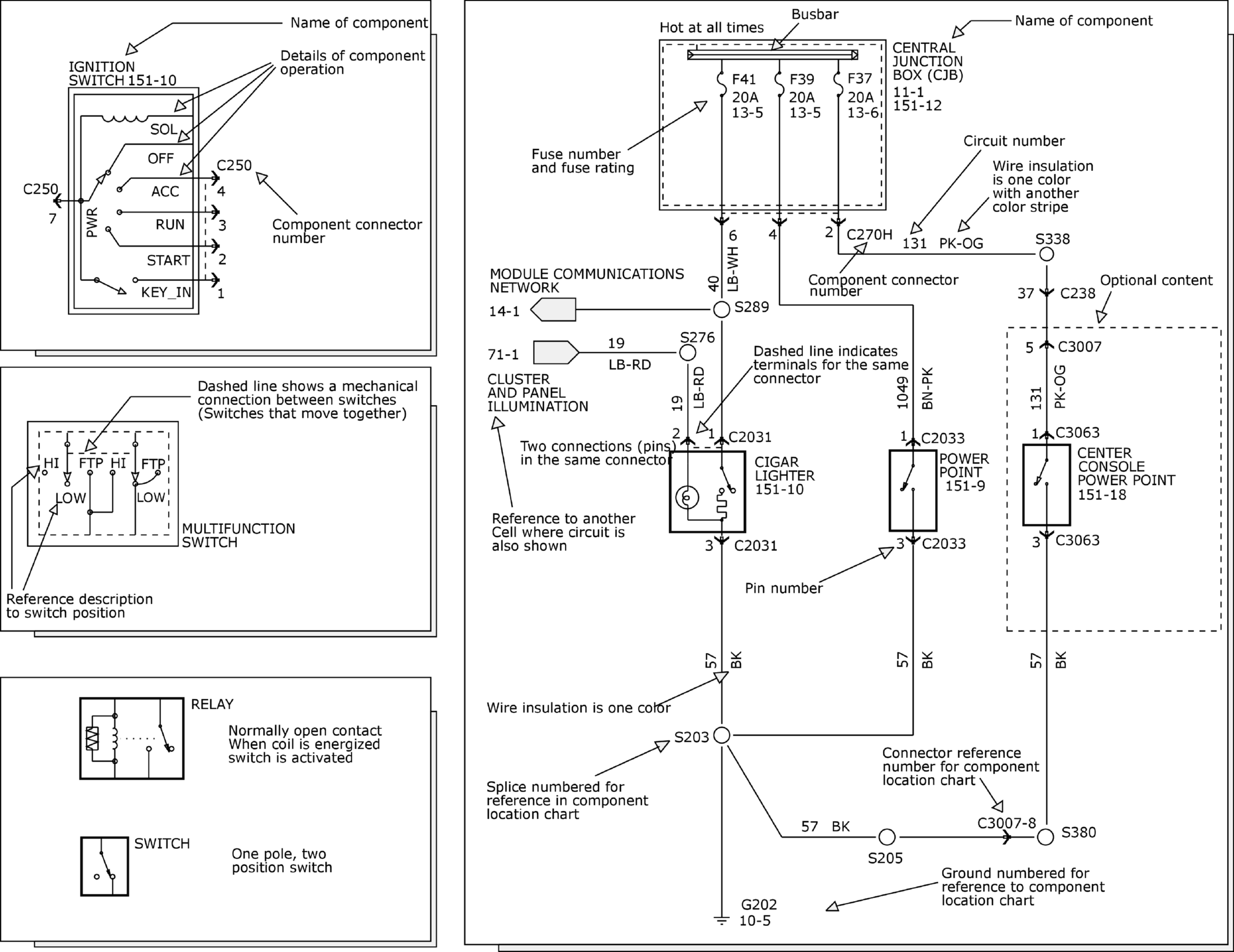

GFDW28261Courtesy of FORD MOTOR COMPANY

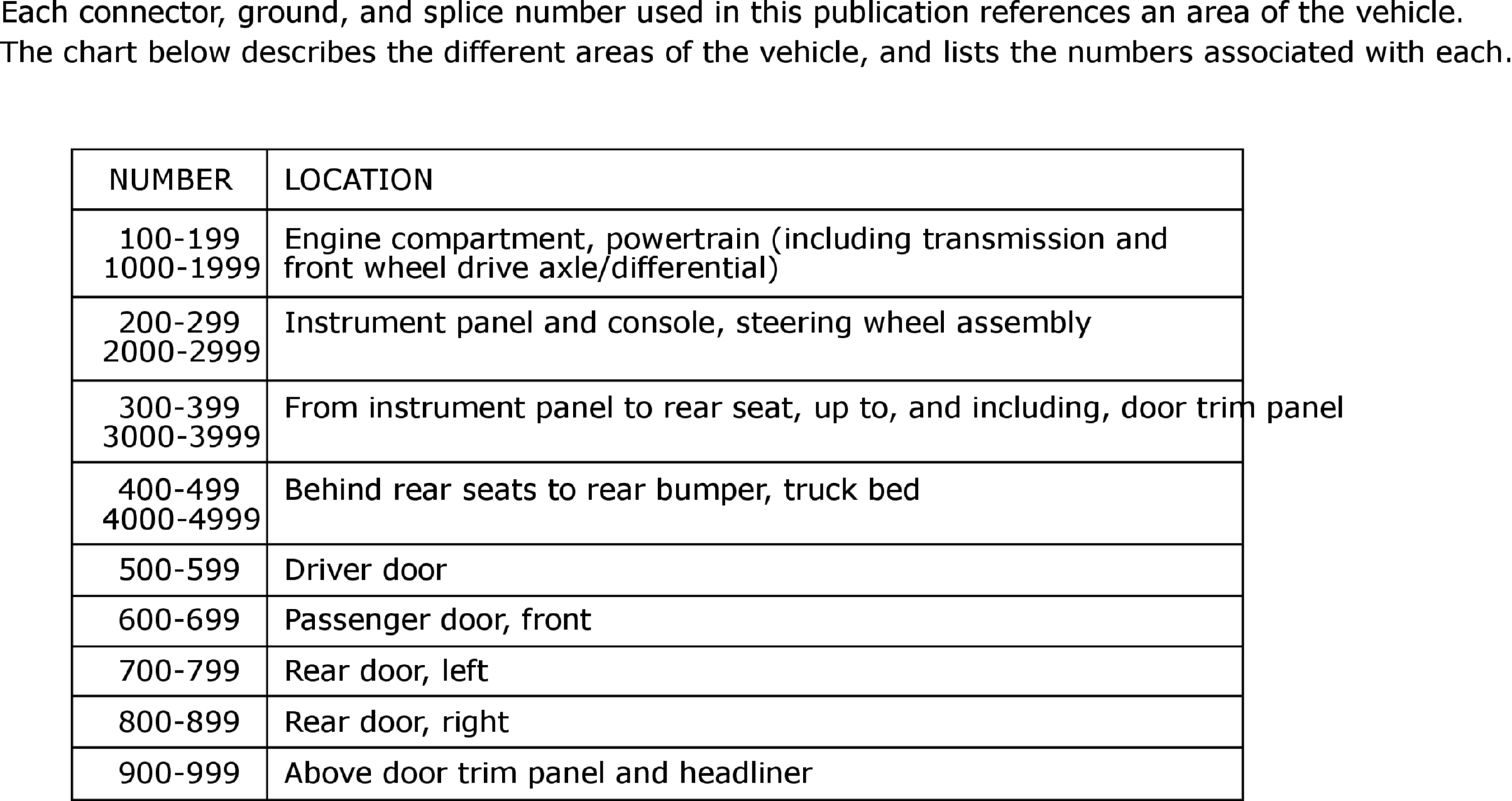

GFDW28262Courtesy of FORD MOTOR COMPANY
