Home >> Ford >> 2015 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Hybrid/ENERGI) >> Component Location Charts >> C4424 (Fusion) Luggage Compartment, Rear, Center

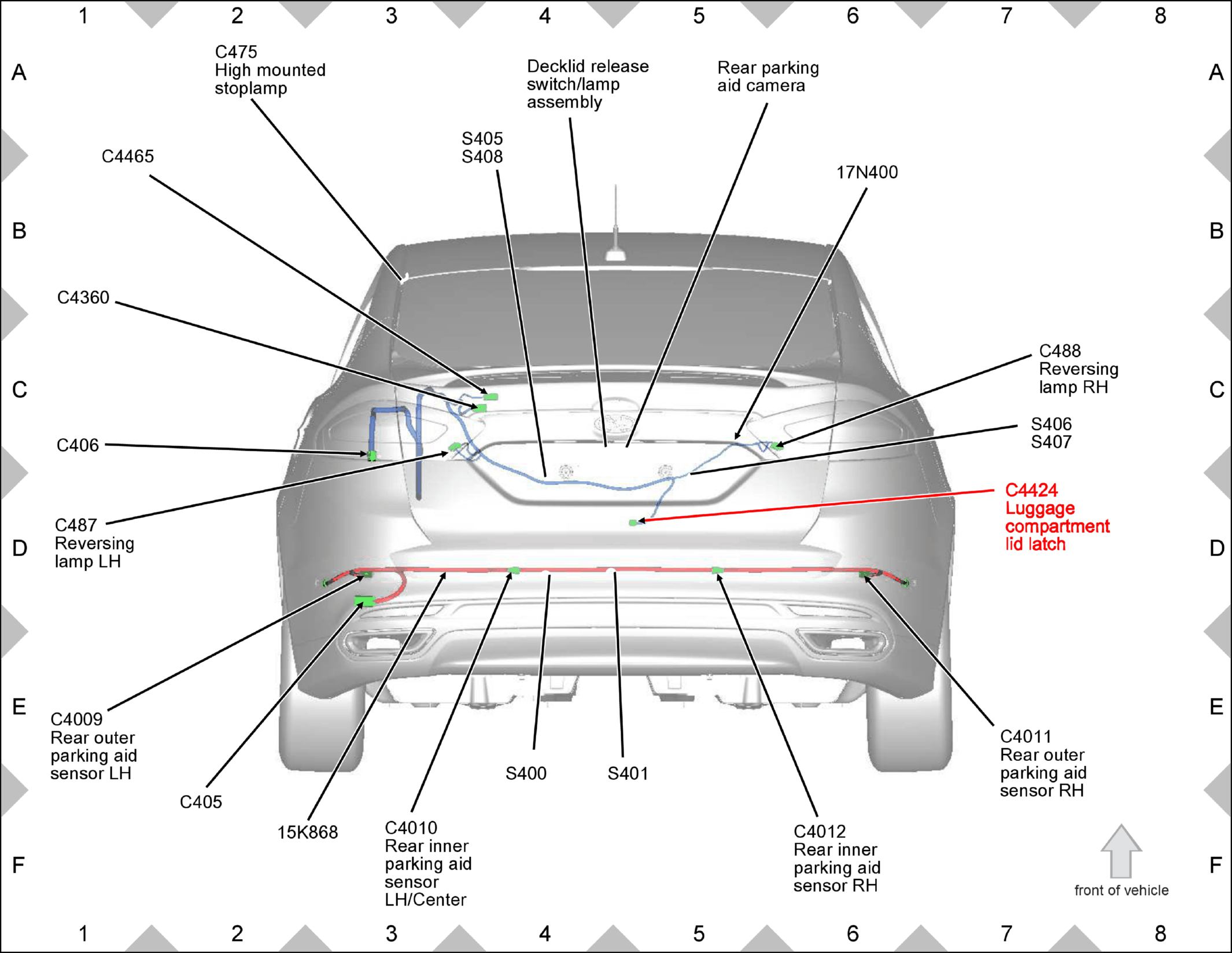

C4424 (Fusion) Luggage Compartment, Rear, Center

GFDW26939

Courtesy of FORD MOTOR COMPANY
