Home >> Ford >> 2015 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Hybrid/ENERGI) >> Component Location Charts >> C367 In Driver Seat Backrest, LH Side

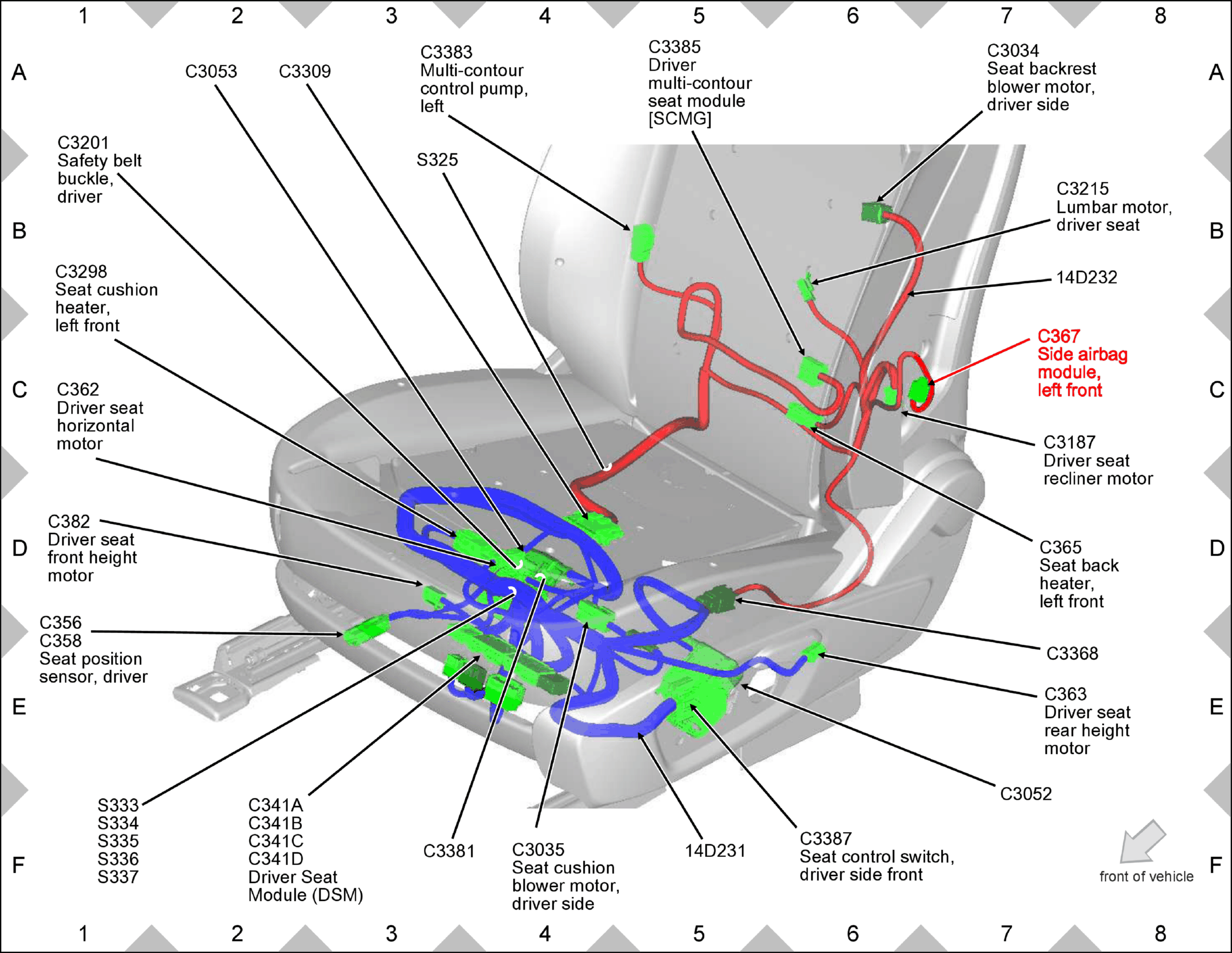

C367 In Driver Seat Backrest, LH Side

GFDW26421Courtesy of FORD MOTOR COMPANY
