Home >> Ford >> 2015 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> OEM Component Harness Location Charts (Hybrid/ENERGI) >> Component Location Charts >> C1339 On Lower, Right Rear Side Of Engine

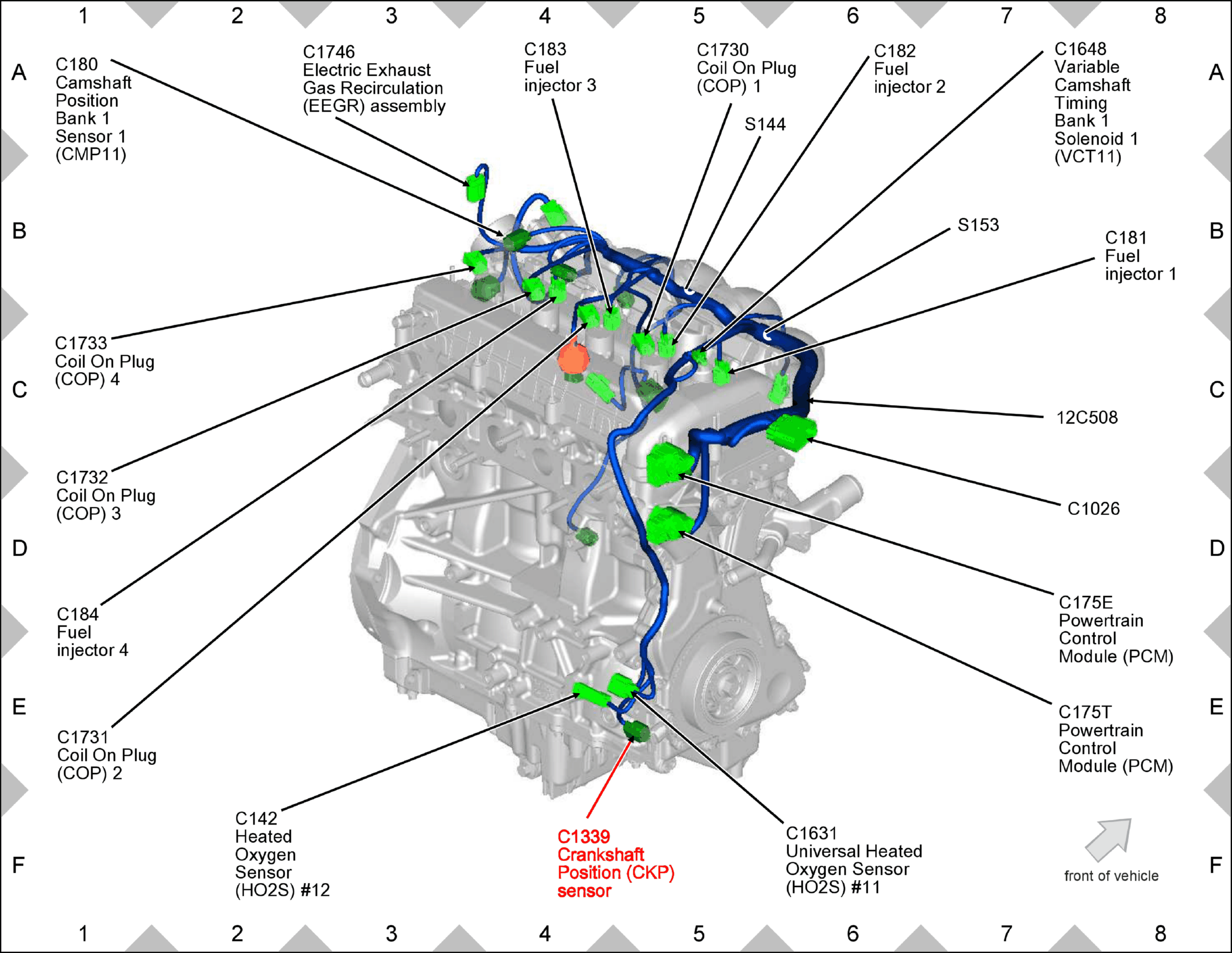

C1339 On Lower, Right Rear Side Of Engine

GFDW26590

Courtesy of FORD MOTOR COMPANY
