Section 114 (Instrument Panel And Interior Switches Illumination (Except Hybrid/ENERGI))
>>
Description And Operation
>>
Instrument Panel and Interior Switches Illumination - System Operation and Component Description
>>

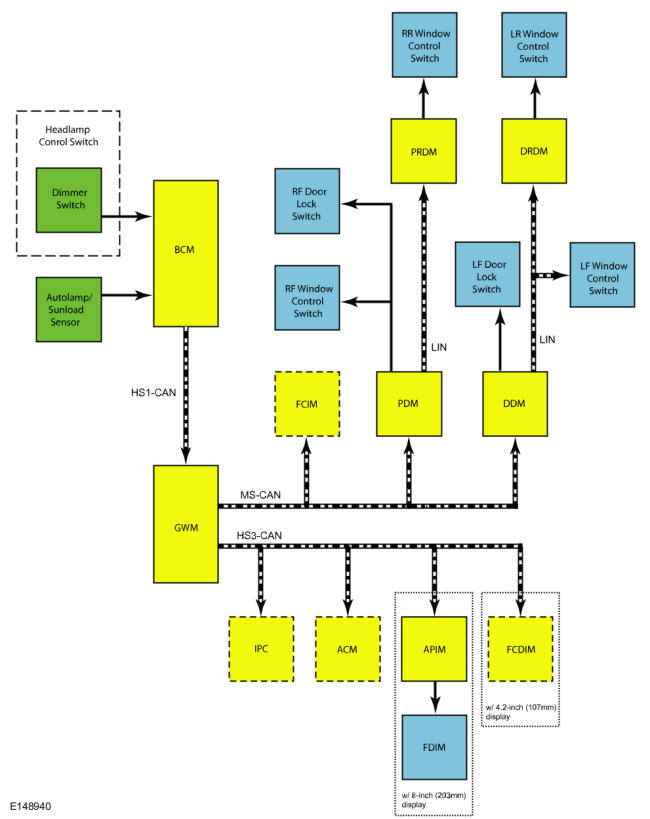

System Diagram - Networked Illumination
System Diagram - Networked Illumination
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY
