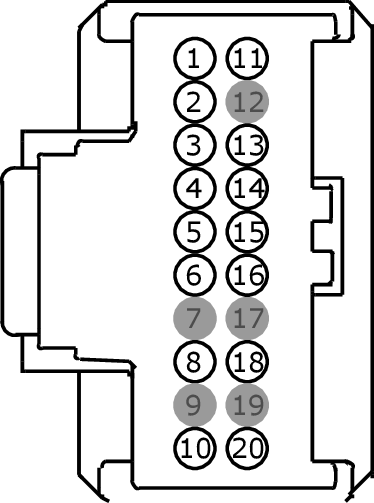

Connector End View (C4816B) - BATTERY ENERGY CONTROL MODULE (BECM)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C4816B
Description
BATTERY ENERGY CONTROL MODULE (BECM)
Color
Harness
14F654
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VDB04 (WH-BU) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 2 | RYC01 (GN-OG) | 22 | CS RTN | |
| 3 | VYC02 (YE-GN) | 22 | CS AOUT2 | |
| 4 | LYC01 (GY-VT) | 22 | CS VREF | |
| 5 | CYC06 (YE-VT) | 22 | CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY NEGATIVE (MC-_CTRL) | |
| 6 | CYB04 (VT-BN) | 22 | CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK NEG (INT-) | |
| 7 | * | * | Not Used | |
| 8 | CYC03 (BN-GN) | 22 | CONT PWR EN | |
| 9 | * | * | Not Used | |
| 10 | CYB03 (BN-YE) | 22 | CTRL MOD. - TRACTION BATTERY CONTROL # INTERLOCK POS (INT+) | |
| 11 | VDB05 (WH) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 12 | * | * | Not Used | |
| 13 | CYC04 (VT-GY) | 22 | CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY PRECHARGE (PRC_CTRL) | |
| 14 | CYC05 (WH-BU) | 22 | CTRL MOD. - CONTACTOR HIGH VOLTAGE BATTERY POSITIVE (MC+_CTRL) | |
| 15 | CYC08 (GY-OG) | 22 | CTRL | |
| 16 | CYC09 (BU-BN) | 22 | CTRL | |
| 17 | * | * | Not Used | |
| 18 | CYC07 (BN-YE) | 22 | CTRL | |
| 19 | * | * | Not Used | |
| 20 | CYD14 (GN-BN) | 22 | CTRL MOD. - DC/DC CONVERTER # DC/DC WAKEUP (DCDC_WKUP) |
