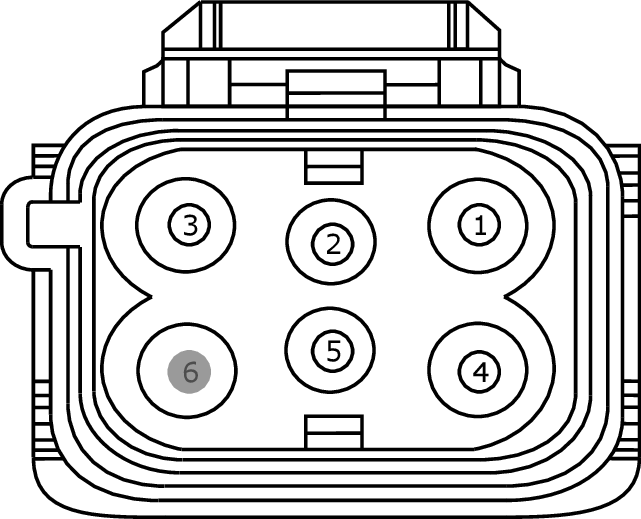

Connector End View (C4455B) - BATTERY CHARGER CONTROL MODULE (BCCM)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C4455B
Description
BATTERY CHARGER CONTROL MODULE (BCCM)
Color
Harness
14B322
Base Part #
part# N/A
Service Pigtail
Not Available
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RYB57 (GN-YE) | 12 | GROUND - CHARGER AC/BOND | |
| 2 | CYB56 (WH-VT) | 20 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET # CONTROL PILOT | |
| 3 | HYB53 (OG) | 12 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET 1 (L1) | |
| 4 | HYB54 (OG) | 12 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET 2 (L2) | |
| 5 | CYB55 (YE-GY) | 20 | PORT - HIGH VOLTAGE BATTERY CHARGER INLET # PROXIMITY DETECTION | |
| 6 | * | * | Not Used |
