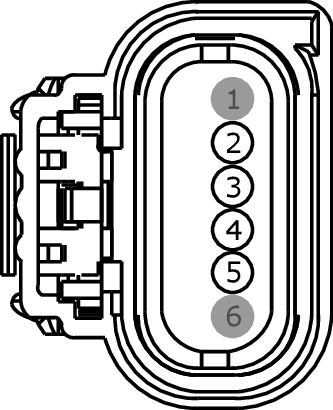

Connector End View (C4369) - SIDE OBSTACLE DETECTION CONTROL MODULE) - LEFT (SOD-L)
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C4369
Description
SIDE OBSTACLE DETECTION CONTROL MODULE - LEFT (SOD-L)
Color
Harness
14A005
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | CBB23 (BN-YE) | 20 | FUSE - 23 OR CIRCUIT BREAKER | |
| 3 | VDB06 (GY-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 4 | VDB07 (VT-OG) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 5 | GD347 (BK-VT) | 20 | GROUND - PILLAR C OR QUARTER PANEL LEFT | |
| 6 | * | * | Not Used |
