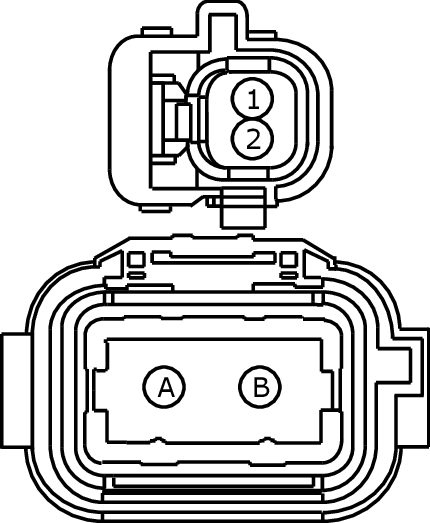

Connector End View (C4001) - INLINE
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
InlineC4001
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 10B694
FEMALE
Harness 14B322
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CYB03 (BN-YE) |
20 |
PHEV |
| 2 |
CYB04 (VT-BN) |
20 |
PHEV |
| A |
HYB20 (OG) |
12 |
PHEV |
| B |
HYB21 (OG) |
12 |
PHEV |
