Connector End View (C3265A) - FRONT SEAT CLIMATE CONTROL MODULE [SCME]
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

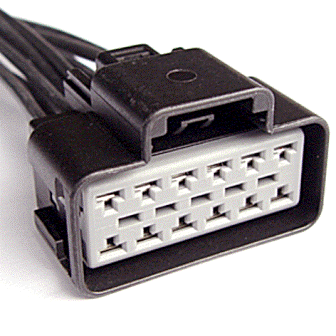

Connector:C3265A
Description
FRONT SEAT CLIMATE CONTROL MODULE [SCME]
Color
Harness
14D230
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| A | CHS07 (GY-BU) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER + | |
| B | RHS07 (BU) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER CUSHION HEATER - | |
| C | CHS06 (BU-BN) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER + | |
| D | RHS06 (WH) | 4 | CTRL MOD. - HOT/COLD SEAT # PASSENGER BACK HEATER - | |
| E | CBX01 (GN-RD) | 4 | POWER - SEAT # RUN/START | |
| F | CBX01 (GN-RD) | 4 | POWER - SEAT # RUN/START | |
| G | CHS02 (YE-BU) | 4 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER + | |
| H | RHS02 (BU-OG) | 4 | CTRL MOD. - HOT/COLD SEAT # DRIVER CUSHION HEATER - | |
| J | CHS01 (GY-VT) | 4 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER + | |
| K | RHS01 (WH-VT) | 4 | CTRL MOD. - HOT/COLD SEAT # DRIVER BACK HEATER - | |
| L | * | * | Not Used | |
| M | GD904 (BK-BU) | 4 | GROUND - DRIVER SEAT # SEAT SWITCH |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-928 |
Service Part Number: 3U2Z-14S411-ZMB Gauge: 12 Pin material: Tin Cavities: 12 Vehicle Uses Module - Climate Control Seat Switch - Seat (driver) Switch - Seat (passenger) |
