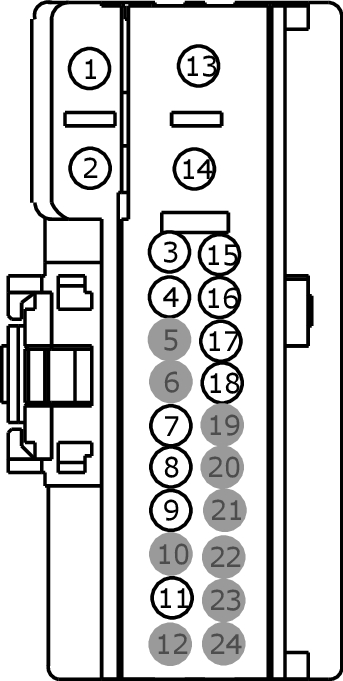

Connector End View (C832) - REAR DOOR MODULE (RDM) RH
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C832
Description
REAR DOOR MODULE (RDM) RH
Color
Harness
14632
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP30 (BN-RD) | 12 | FUSE - 30 OR CIRCUIT BREAKER | |
| 2 | GD383 (BK-WH) | 12 | GROUND - CROSS MEMBER MIDDLE PASSENGER OR RIGHT | |
| 3 | CPW59 (VT) | 26 | SWITCH - POWER WINDOW REAR | |
| 4 | LPW54 (BN-GN) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS + | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VPW56 (BN-BU) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 1 | |
| 8 | VPW57 (BU-GY) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSOR 2 | |
| 9 | CPW23 (GY) | 26 | SWITCH - POWER WINDOW REAR RIGHT # DOWN | |
| 10 | * | * | Not Used | |
| 11 | CPW24 (WH) | 26 | SWITCH - POWER WINDOW REAR RIGHT # UP | |
| 12 | * | * | Not Used | |
| 13 | CPW53 (YE-OG) | 12 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # DOWN | |
| 14 | CPW52 (VT-WH) | 12 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # UP | |
| 15 | RPL72 (BN-WH) | 22 | CTRL MOD. - DOOR LOCK # LATCH REAR PASSENGER SIDE | |
| 16 | VDN10 (BN) | 22 | CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE | |
| 16 | VDN10 (BN-VT) | 22 | CTRL MOD. - LIN BUS # PASSENGER OR RIGHT HAND DOOR MODULE | |
| 17 | RPW55 (GY-VT) | 22 | CTRL MOD. - WINDOW MOTOR REAR RIGHT # SENSORS - | |
| 18 | RPW09 (BN) | 22 | CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN | |
| 18 | RPW09 (BN) | 26 | CTRL MOD. - POWER WINDOW SWITCH REAR RIGHT RETURN | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used |
