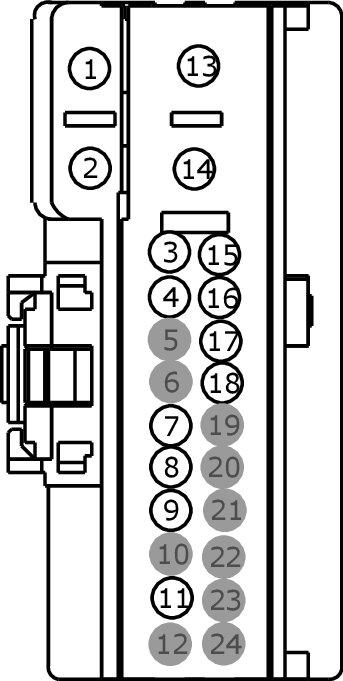

Connector End View (C728) - REAR DOOR MODULE (RDM) LH
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C728
Description
REAR DOOR MODULE (RDM) LH
Color
Harness
14633
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | SBP29 (GY-RD) | 12 | FUSE - 29 OR CIRCUIT BREAKER | |
| 2 | GD382 (BK-GY) | 12 | GROUND - CROSS MEMBER MIDDLE DRIVER OR LEFT | |
| 3 | CPW58 (YE) | 26 | SWITCH - POWER WINDOW REAR | |
| 4 | LPW48 (YE-GY) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS + | |
| 5 | * | * | Not Used | |
| 6 | * | * | Not Used | |
| 7 | VPW50 (GN-OG) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSOR 1 | |
| 8 | VPW51 (BN-YE) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSOR 2 | |
| 9 | CPW21 (BN) | 26 | SWITCH - POWER WINDOW REAR LEFT # DOWN | |
| 10 | * | * | Not Used | |
| 11 | CPW22 (GN) | 26 | SWITCH - POWER WINDOW REAR LEFT # UP | |
| 12 | * | * | Not Used | |
| 13 | CPW47 (VT-OG) | 12 | CTRL MOD. - WINDOW MOTOR REAR LEFT # DOWN | |
| 14 | CPW46 (GY-BN) | 12 | CTRL MOD. - WINDOW MOTOR REAR LEFT # UP | |
| 15 | RPL71 (BU) | 22 | CTRL MOD. - DOOR LOCK # LATCH REAR DRIVER SIDE | |
| 16 | VDN09 (WH) | 22 | CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE | |
| 16 | VDN09 (WH-GN) | 22 | CTRL MOD. - LIN BUS # DRIVER OR LEFT HAND DOOR MODULE | |
| 17 | RPW49 (BU-BN) | 22 | CTRL MOD. - WINDOW MOTOR REAR LEFT # SENSORS - | |
| 18 | RPW07 (GY) | 26 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | |
| 18 | RPW07 (GY-OG) | 22 | CTRL MOD. - POWER WINDOW SWITCH REAR LEFT RETURN | |
| 19 | * | * | Not Used | |
| 20 | * | * | Not Used | |
| 21 | * | * | Not Used | |
| 22 | * | * | Not Used | |
| 23 | * | * | Not Used | |
| 24 | * | * | Not Used |
