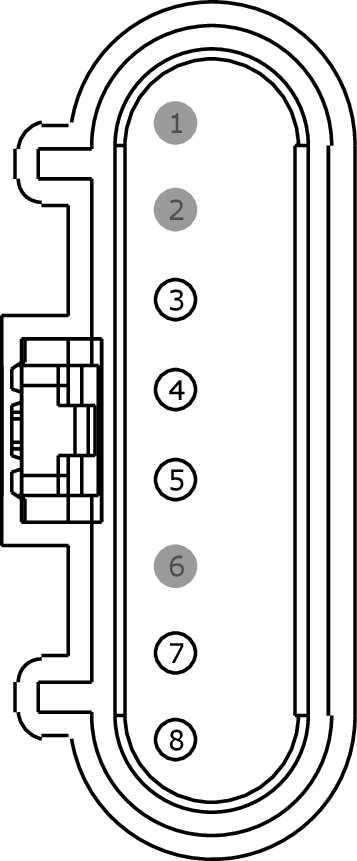

Connector End View (C705) - REAR DOOR LATCH RELEASE MOTOR LH
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C705
Description
REAR DOOR LATCH RELEASE MOTOR LH
Color
Harness
14633
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * | * | Not Used | |
| 2 | * | * | Not Used | |
| 3 | CPL36 (GN) | 22 | SWITCH - LATCH REAR DRIVER SIDE # AJAR | |
| 4 | CPL69 (YE-VT) | 22 | SWITCH - LATCH REAR DRIVER SIDE # CHILD LOCK FEEDBACK | |
| 4 | CPL89 (BN-BU) | 22 | CTRL MOD. - DOOR LOCK # LOCK STATUS INDICATOR PASSENGER | |
| 5 | RPL71 (BU) | 22 | CTRL MOD. - DOOR LOCK # LATCH REAR DRIVER SIDE | |
| 6 | * | * | Not Used | |
| 7 | CPL11 (GY-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 7 | CPL11 (GN-BN) | 14 | CTRL MOD. - DOOR LOCK # ALL LOCK | |
| 8 | CPL13 (BN-GN) | 14 | CTRL MOD. - DOOR LOCK # ALL UNLOCK |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1366 |
Service Part Number: 3U2Z-14S411-MBB Gauge: 16 Pin material: Silver Cavities: 8 Vehicle Uses Actuator - Door Lock - LH - Front Actuator - Door Lock - LH - Rear Actuator - Door Lock - RH - Front Actuator - Door Lock - RH - Rear Module - Liftgate Switch - Door Ajar / Interior Lamp Switch - Door Lock (LH) Switch - Door Lock (RH) Switch - Sliding Door Contact |
