Connector End View (C576) - EXTERIOR MIRROR BLIND SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED, LEFT
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C576
Description
EXTERIOR MIRROR BLIND SPOT (BLIS) / CROSS TRAFFIC ALERT (CTA) LED, LEFT
Color
GN
Harness
PIA
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | * (*) | * | SENSOR - ALERT | |
| 2 | * (*) | * | GROUND - COWL SIDE/PILLAR A LEFT |

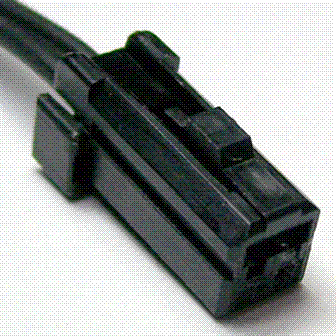

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1197 |
Service Part Number: 3U2Z-14S411-PFB Gauge: 20 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Mirror - Vanity Sensor - Speed Switch - Brake Deactivation Switch - Brake Pedal Position Switch - Brake Pressure Switch - Park Brake Switch - Speed Control Switch - Speed Control Deactivation Switch - Stop Lamp Switch - Visor |
