Connector End View (C567) - DRIVER DOOR SIDE IMPACT SENSOR
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

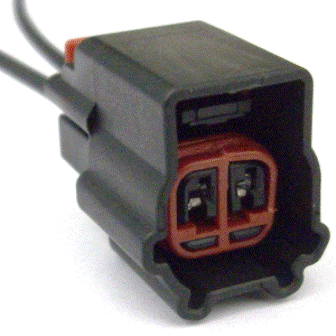

Connector:C567
Description
DRIVER DOOR SIDE IMPACT SENSOR
Color
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | VR217 (GY) | 22 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | |
| 1 | VR217 (GY-YE) | 22 | SENSOR - SIDE IMPACT FRONT DRIVER SIDE | |
| 1 | VR221 (BU-GN) | 22 | SENSOR - SIDE IMPACT ROW 3 DRIVER SIDE | |
| 2 | RR131 (VT) | 22 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - | |
| 2 | RR131 (VT-GY) | 22 | CTRL MOD. - SENSOR SIDE IMPACT FRONT DRIVER SIDE - | |
| 2 | RR135 (GN-BN) | 22 | CTRL MOD. - SENSOR SIDE IMPACT ROW 3 DRIVER SIDE - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-948 |
Service Part Number: 3U2Z-14S411-EKB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses Motor - Windshield Washer Fluid Pump Sensor - Side Impact |
