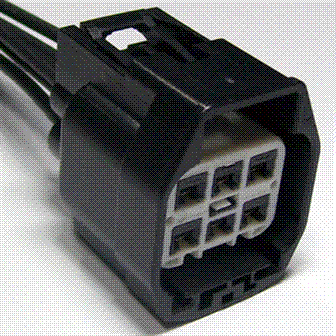

Connector End View (C518) - DRIVER DOOR WINDOW REGULATOR MOTOR
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C518
Description
DRIVER DOOR WINDOW REGULATOR MOTOR
Color
Harness
14631
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPW35 (GN) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # DOWN | |
| 2 | VPW38 (YE-BU) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 1 | |
| 3 | LPW36 (WH-BN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS | |
| 4 | CPW34 (BU) | 12 | CTRL MOD. - WINDOW MOTOR DRIVER # UP | |
| 5 | VPW39 (BU-WH) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSOR 2 | |
| 6 | RPW37 (VT-GN) | 22 | CTRL MOD. - WINDOW MOTOR DRIVER # SENSORS |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1344 |
Service Part Number: DU2Z-14S411-AEA Gauge: 16 Pin material: Tin Cavities: 6 Vehicle Uses Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
