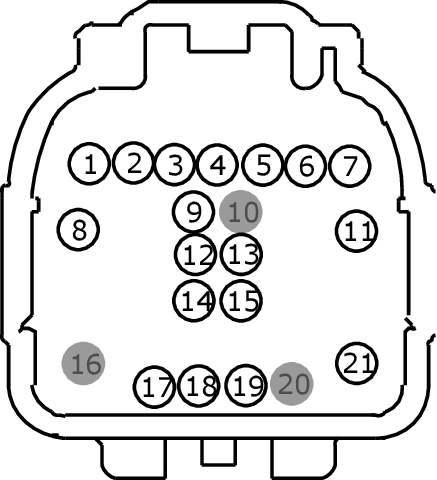

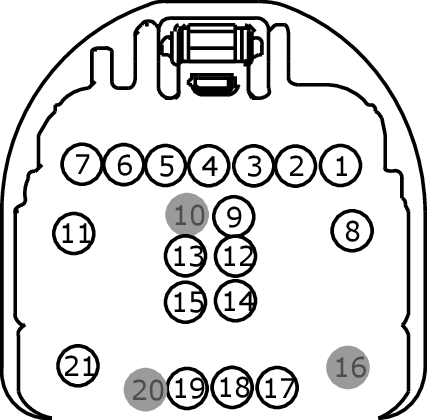

Connector End View (C406) - INLINE
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
InlineC406
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
MALE
Harness 14A005
FEMALE
Harness 17N400
| Pin | Circuit | Gauge | Qualifier |
| 1 | CLN13 (WH-BU) | 20 | 17N400 |
| 1 | CLN13 (WH-BU) | 22 | 14A005 |
| 2 | CLS05 (BU-GY) | 20 | 17N400 |
| 2 | CLS05 (BU-GY) | 22 | 14A005 |
| 3 | VDN04 (VT-WH) | 20 | 17N400 |
| 3 | VDN04 (VT-WH) | 22 | 14A005 |
| 3 | VDN04 (WH) | 22 | 14A005 |
| 4 | CLS17 (YE-GY) | 20 | 17N400 |
| 4 | CLS17 (YE-GY) | 22 | 14A005 |
| 5 | CLS28 (BU-WH) | 20 | |
| 5 | CLS28 (BU-WH) | 22 | 14A005 |
| 6 | CPL10 (GN-WH) | 18 | 17N400 |
| 6 | CPL10 (GN-WH) | 22 | 14A005 |
| 7 | CPR89 (BN-BU) | 20 | 17N400 |
| 7 | CPR89 (BN-BU) | 22 | 14A005 |
| 8 | CPL10 (GN-WH) | 18 | |
| 8 | CPL10 (GN-WH) | 22 | 14A005 |
| 9 | CBB23 (BN-YE) | 20 | |
| 10 | * | * | 14A005 |
| 10 | CLS37 (WH-BU) | 20 | 17N400 |
| 11 | GD215 (BK-GY) | 18 | 14A005 |
| 11 | GD215 (BK-GY) | 20 | 17N400 |
| 12 | CPL44 (YE-OG) | 22 | 14A005 |
| 12 | CPL81 (BN-VT) | 20 | 17N400 |
| 12 | CPL81 (BN-VT) | 22 | 14A005 |
| 13 | CLN09 (YE-GN) | 20 | |
| 14 | CPL44 (YE-OG) | 20 | 17N400 |
| 14 | CPL44 (YE-OG) | 22 | 14A005 |
| 15 | CPL60 (BN-YE) | 20 | 17N400 |
| 15 | CPL60 (BN-YE) | 22 | 14A005 |
| 16 | * | * | |
| 17 | VMP19 (WH-GN) | 20 | 17N400 |
| 17 | VMP19 (WH-GN) | 22 | 14A005 |
| 18 | RMP19 (BN-VT) | 20 | 17N400 |
| 18 | RMP19 (BN-VT) | 22 | 14A005 |
| 19 | DMP19 (*) | 20 | |
| 20 | * | * | |
| 21 | GD347 (BK-VT) | 16 | 17N400 |
| 21 | GD347 (BK-VT) | 18 | 14A005 |
| 21 | GD347 (BK-VT) | 20 | 14A005 |
