Connector End View (C1048) - COOLING FAN MODULE
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector:C1048
Description
COOLING FAN MODULE
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
See Below
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CEC05 (VT-GY) | 10 | RELAY - ENGINE COOLING FAN | |
| 2 | GD122 (BK) | 10 | GROUND - FENDER FRONT LEFT # 3RD POINT | |
| 3 | * | * | Not Used | |
| 4 | VEC03 (WH-BU) | 20 | CTRL MOD. - COOLING FAN CONTROL VARIABLE (FCV) |
| Available Pigtail Kits | |

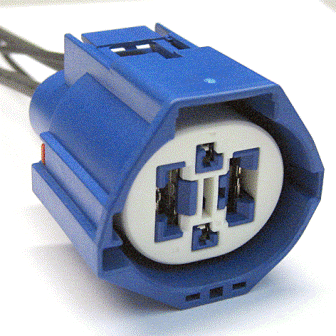

| Pigtail Kit Part Number WPT-1361 |
Service Part Number: 9U2Z-14S411-LB Gauge: 10 16 Pin material: Tin (greased) Cavities: 4 Vehicle Uses Motor - Electric Water Pump Motor - Engine Cooling Fan |

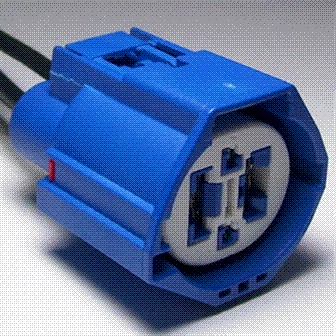

| Pigtail Kit Part Number WPT-935 |
Service Part Number: 9U2Z-14S411-LA Gauge: 10 16 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Engine Cooling Fan |
