Fuel Tank: Removal

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation steps.

WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.

Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
Drain the fuel tank. Refer to: Fuel Tank Draining .

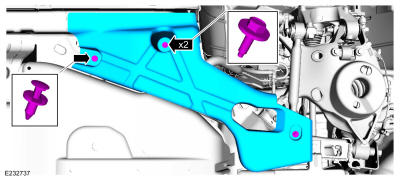

Remove the retainers and the splash shield.

Courtesy of FORD MOTOR COMPANY

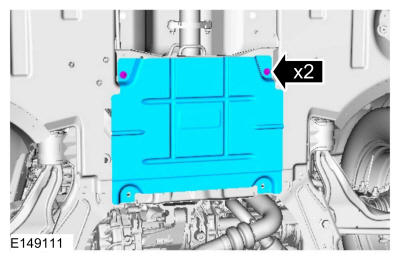

Remove the retainers and the air deflector.

Courtesy of FORD MOTOR COMPANY

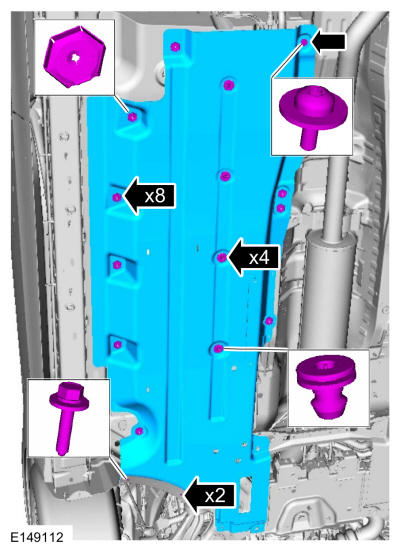

Remove the retainers and the heat shield.

Courtesy of FORD MOTOR COMPANY
Remove the exhaust. Refer to: Muffler and Tailpipe .
Remove the screws, pushpin and the air deflector.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

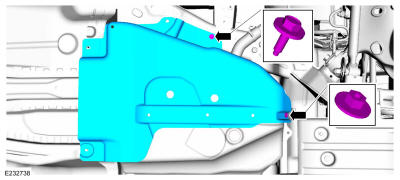

Remove the screw, nut and the aero shield.
Torque: 13 lb.in (1.5 Nm)

Courtesy of FORD MOTOR COMPANY

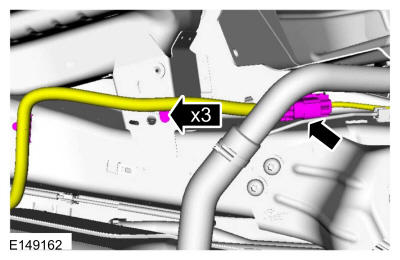

Disconnect the electrical connector and position the harness aside.

Courtesy of FORD MOTOR COMPANY

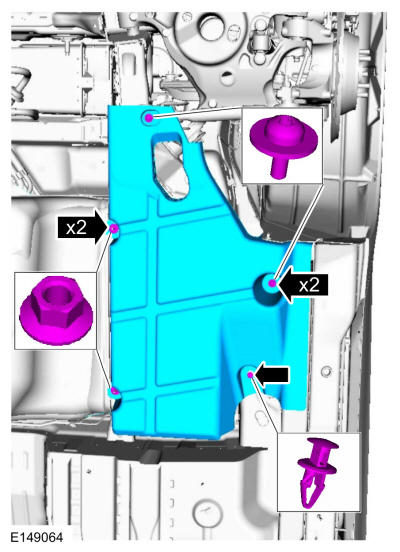

Remove the retainers and the deflector.

Courtesy of FORD MOTOR COMPANY

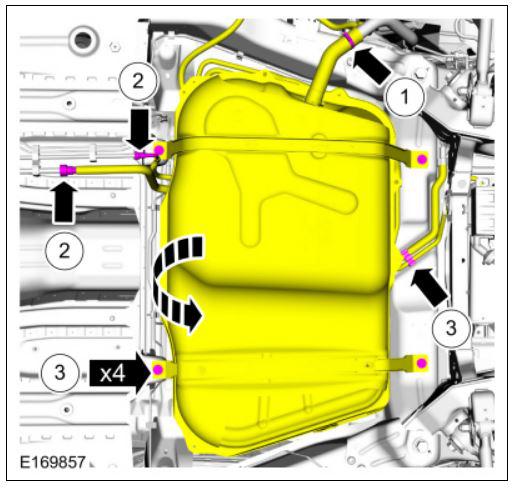

- Pinch off the fuel filler pipe hose.
- Loosen the clamp and disconnect the hose from the fuel filler pipe.
- Disconnect the Fuel Feed Line and Vapor Tube. Refer to: Quick Release Coupling . Refer to: Spring Lock Couplings .
- Remove the fuel tank strap bolts. Use the General Equipment: Powertrain Jack Use the General Equipment: Hose Clamp(s)
  Torque

  1: 35 lb.in (4 Nm)

  2: 18 lb.ft (25 Nm)
Courtesy of FORD MOTOR COMPANY

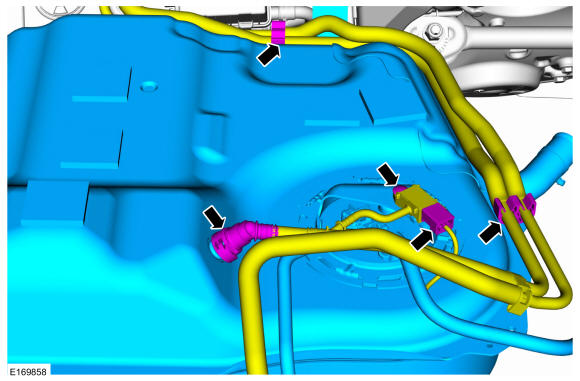

- Lower the fuel tank far enough to disconnect the electrical connector and vapor lines. Refer to: Quick Release Coupling .
- Remove the fuel tank.

Courtesy of FORD MOTOR COMPANY
