Fuel Lines: Removal
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- Remove the Fuel Tank. Refer to: Fuel Tank .

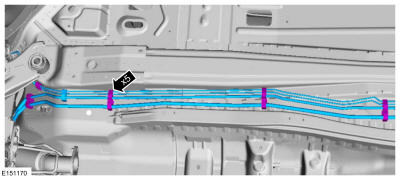

- Torque: 133 lb.in (15 Nm)
-

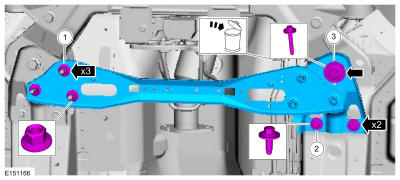

- Torque: 33 lb.ft (45 Nm)
- Torque: 44 lb.ft (60 Nm)
- Discard the specified component. Follow local disposal regulations.
Torque:
Stage 1: 76 lb.ft (103 Nm)
Stage 2: 270 °

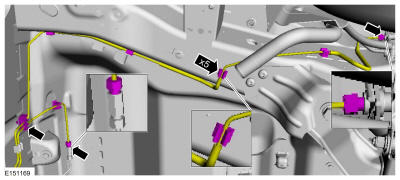

- Torque: 133 lb.in (15 Nm)
- Remove the Air Cleaner. Refer to: Air Cleaner .
-

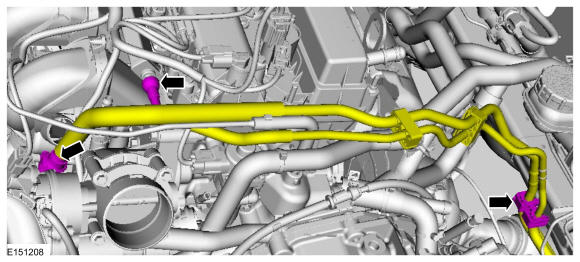

NOTE: Some residual fuel may remain in the fuel tubes after releasing the fuel system pressure. When disconnecting or removing any fuel tubes, carefully drain any residual fuel into a suitable container.
Refer to: Quick Release Coupling . Refer to: Spring Lock Couplings .
