Fuel Level Sender: Removal

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Before beginning any service procedure, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
  1. Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
  2. Refer to: Fuel Pump and Sender Unit .

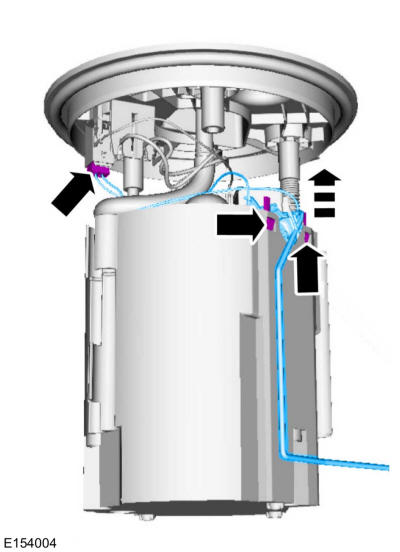

    • Disconnect the electrical connector.

    • Release the retainer tabs and remove the Fuel Level Sender.

GFD198486Courtesy of FORD MOTOR COMPANY
