Connector End View (C922) - INLINE
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available

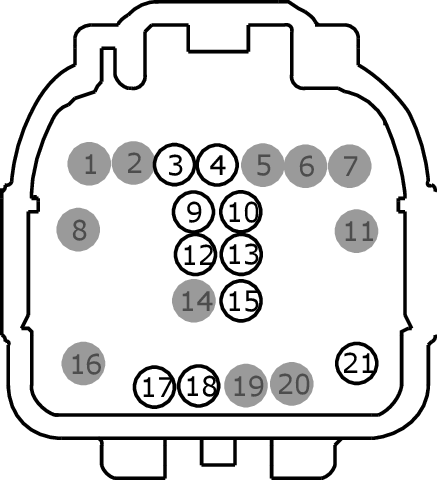

MALE
Harness 14A005

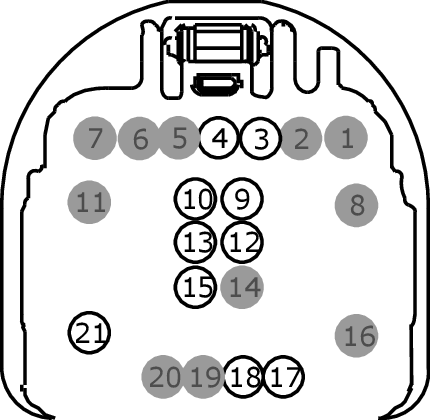

FEMALE
Harness 17C712
|
Pin |
Circuit |
Gauge |
Qualifier |
|
1 |
* |
* |
|
|
2 |
* |
* |
|
|
3 |
VME99 (VT) |
26 |
17C712 |
|
3 |
VME99 (VT-OG) |
22 |
14A005 |
|
4 |
RME99 (YE) |
26 |
17C712 |
|
4 |
RME99 (YE-GY) |
22 |
14A005 |
|
5 |
* |
* |
|
|
6 |
* |
* |
|
|
7 |
* |
* |
|
|
8 |
* |
* |
|
|
9 |
CPR86 (GY-BN) |
22 |
|
|
10 |
CPR31 (VT-BN) |
22 |
|
|
11 |
* |
* |
|
|
12 |
CPR87 (VT) |
20 |
14A005 |
|
12 |
CPR87 (VT) |
22 |
|
|
13 |
CPR38 (WH-BU) |
22 |
|
|
14 |
* |
* |
|
|
15 |
CPR40 (YE-OG) |
22 |
|
|
16 |
* |
* |
|
|
17 |
VDB25 (GN) |
26 |
14A005 |
|
17 |
VDB25 (GN-OG) |
22 |
17C712 |
|
18 |
VDB26 (GY) |
26 |
14A005 |
|
18 |
VDB26 (GY-BU) |
22 |
17C712 |
|
19 |
* |
* |
|
|
20 |
* |
* |
|
|
21 |
GD383 (BK-WH) |
20 |
