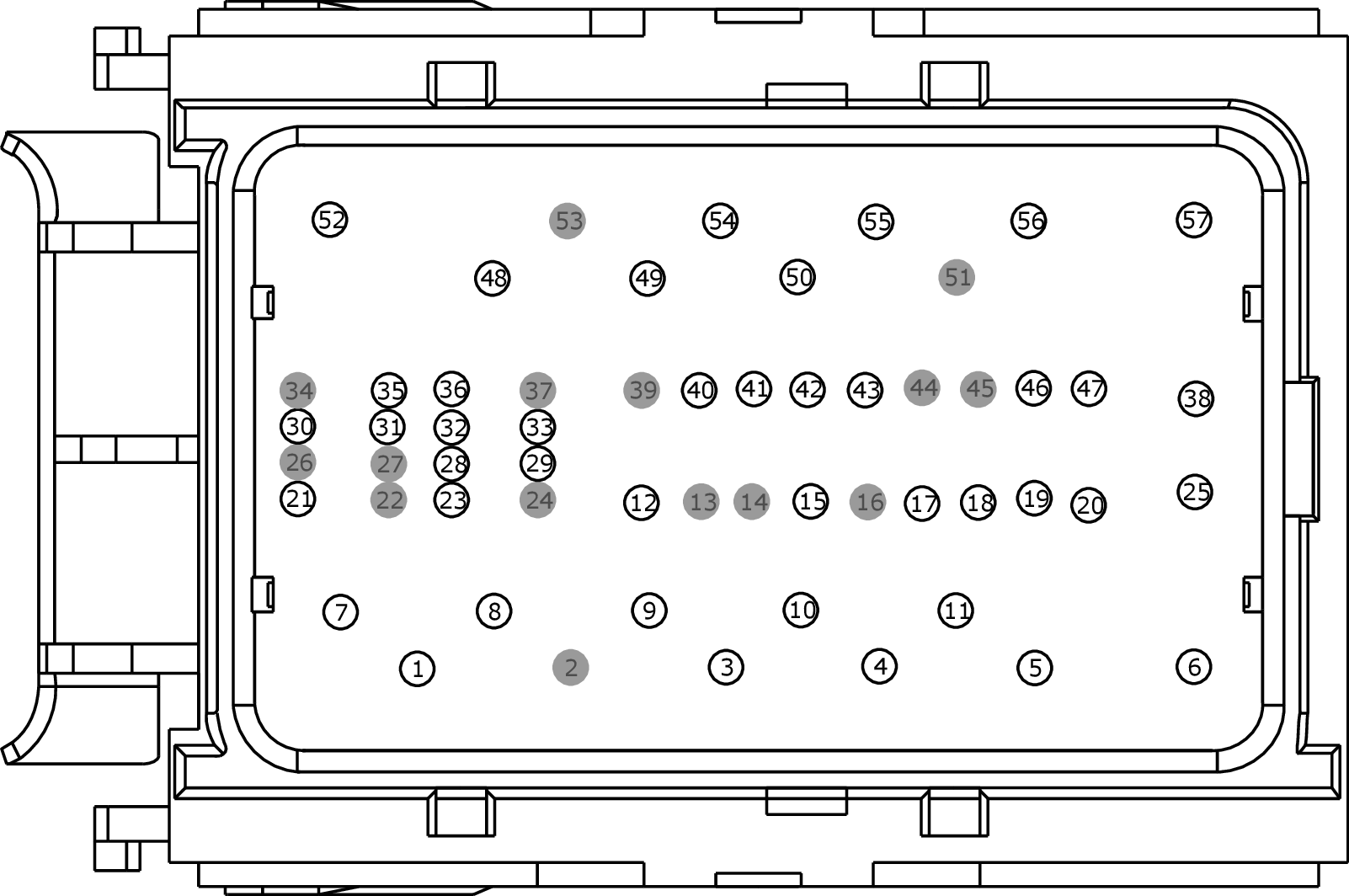

Connector End View (C1035A) - BATTERY JUNCTION BOX (BJB)
Description
BATTERY JUNCTION BOX (BJB)
Color
Harness
12A581
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
CRW03 (VT-WH) |
14 |
RELAY - FRONT WIPER |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
CH402 (YE-GN) |
10 |
RELAY - FRONT BLOWER |
|
|
4 |
CRD06 (BN-YE) |
10 |
RELAY - HEATER REAR WINDOW |
|
|
5 |
CCB29 (WH-GN) |
10 |
RELAY - VACUUM PUMP |
|
|
6 |
SBB67 (BU-RD) |
10 |
FUSE - 67 OR CIRCUIT BREAKER |
|
|
7 |
GD120 (BK-GN) |
16 |
GROUND - FENDER FRONT LEFT |
|
|
8 |
CRW25 (BU-GY) |
14 |
RELAY - FRONT WIPER PARK |
|
|
9 |
SBB10 (YE-RD) |
16 |
FUSE - 10 OR CIRCUIT BREAKER |
|
|
10 |
CBB07 (GN-BU) |
14 |
FUSE - 7 OR CIRCUIT BREAKER |
|
|
11 |
CBK02 (GN) |
18 |
FUSE - 2 OR CIRCUIT BREAKER |
|
|
12 |
CCB41 (YE) |
20 |
CTRL MOD. - RELAY VACUUM PUMP 2 |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
SBB47 (WH-RD) |
20 |
FUSE - 47 OR CIRCUIT BREAKER |
|
|
16 |
* |
* |
Not Used |
|
|
17 |
CBK04 (VT) |
14 |
FUSE - 4 OR CIRCUIT BREAKER |
|
|
18 |
CBK03 (GY) |
16 |
FUSE - 3 OR CIRCUIT BREAKER |
|
|
19 |
CBB19 (BN-WH) |
20 |
FUSE - 19 OR CIRCUIT BREAKER |
|
|
20 |
CBB26 (BU-WH) |
20 |
FUSE - 26 OR CIRCUIT BREAKER |
|
|
21 |
CE237 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # HOLD PCM RELAY |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
CRD02 (BN-BU) |
20 |
CTRL MOD. - RELAY HEATER REAR WINDOW |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
CEC05 (VT-GY) |
10 |
RELAY - ENGINE COOLING FAN |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
CDC55 (BN-VT) |
20 |
RELAY - RUN, START |
|
|
29 |
CCB30 (GY-VT) |
20 |
CTRL MOD. - RELAY VACUUM PUMP |
|
|
30 |
CDC71 (YE-GY) |
20 |
CTRL MOD. - POWER OUTLET ENABLE OR SET |
|
|
31 |
CH123 (VT-GN) |
20 |
CTRL MOD. - BLOWER MOTOR RELAY |
|
|
32 |
CRH02 (BU-WH) |
20 |
SWITCH - HORN |
|
|
33 |
CE226 (YE-VT) |
20 |
CTRL MOD. - POWERTRAIN # FUEL PUMP ON/OFF |
|
|
34 |
* |
* |
Not Used |
|
|
35 |
CDC72 (BN-WH) |
20 |
CTRL MOD. - POWER OUTLET DISABLE OR RESET |
|
|
36 |
CDC40 (VT-GY) |
20 |
RELAY - DELAY ACCESSORY |
|
|
37 |
* |
* |
Not Used |
|
|
38 |
SBB35 (BU-RD) |
18 |
FUSE - 35 OR CIRCUIT BREAKER |
|
|
39 |
* |
* |
Not Used |
|
|
40 |
CBB45 (YE) |
20 |
FUSE - 45 OR CIRCUIT BREAKER |
|
|
41 |
SBB46 (BN-RD) |
20 |
FUSE - 46 OR CIRCUIT BREAKER |
|
|
42 |
SBB18 (YE-RD) |
20 |
FUSE - 18 OR CIRCUIT BREAKER |
|
|
43 |
CBB20 (YE-VT) |
20 |
FUSE - 20 OR CIRCUIT BREAKER |
|
|
44 |
* |
* |
Not Used |
|
|
45 |
* |
* |
Not Used |
|
|
46 |
CRH04 (VT-GN) |
18 |
CTRL MOD. - RELAY HORN |
|
|
47 |
CBB25 (WH-OG) |
20 |
FUSE - 25 OR CIRCUIT BREAKER |
|
|
48 |
SBB05 (GY-RD) |
16 |
FUSE - 5 OR CIRCUIT BREAKER |
|
|
49 |
SBB16 (VT-RD) |
16 |
FUSE - 16 OR CIRCUIT BREAKER |
|
|
50 |
CE608 (VT-GN) |
12 |
RELAY - FUEL PUMP |
|
|
51 |
* |
* |
Not Used |
|
|
52 |
SBB82 (YE-RD) |
10 |
FUSE - 82 OR CIRCUIT BREAKER |
|
|
53 |
* |
* |
Not Used |
|
|
54 |
SBB74 (YE-RD) |
12 |
FUSE - 74 OR CIRCUIT BREAKER |
|
|
55 |
SBB70 (BN-RD) |
12 |
FUSE - 70 OR CIRCUIT BREAKER |
|
|
56 |
SBB69 (GY-RD) |
14 |
FUSE - 69 OR CIRCUIT BREAKER |
|
|
57 |
SBB62 (BN-RD) |
10 |
FUSE - 62 OR CIRCUIT BREAKER |
