Active Grille Shutter: Removal

NOTE: Removal steps in this procedure may contain installation details.

  1. 1.

    WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (HYBRID/ENERGI) . Failure to follow this instruction may result in serious personal injury.

    Refer to: Health and Safety Precautions .

  1. 2.

    Remove the front bumper cover. REFER to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

  1. 3.

    If equipped, remove the charge air cooler.

  1. 4.

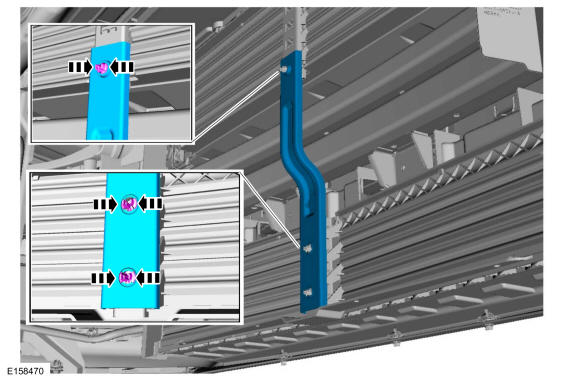

    Release the retaining tabs and remove the linkage.
GFD72035Courtesy of FORD MOTOR COMPANY

  1. 5.

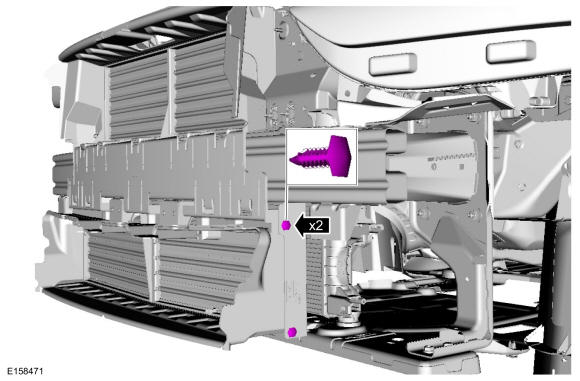

    On both sides. Remove the pin-type retainers.
GFD72036Courtesy of FORD MOTOR COMPANY

  1. 6.

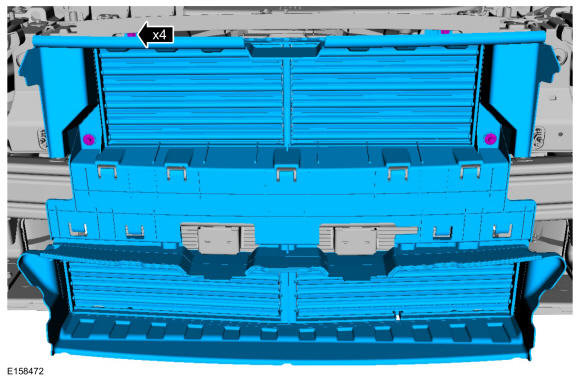

    Remove the bolts and the active grille shutter.

    Torque

    : 53 lb.in (6 Nm)

GFD72037Courtesy of FORD MOTOR COMPANY
