Home
>>
Ford
>>
2015
>>
Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Seats
>>
Seating System - Rear (Hybrid/ENERGI)
>>
Removal And Installation
>>
Rear Seat Cushion
>>
Removal

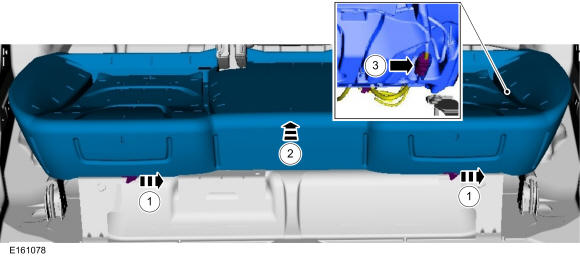

Rear Seat Cushion: Removal
1.
Remove the rear seat cushion.
1.
Release the locking tabs.
2.
Position the rear seat cushion upward.
3.
If equipped with heated seats. Disconnect the electrical connector.
