Rear Seat Armrest: Removal

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the rear seat cushion. Refer to: Rear Seat Cushion .

2.
- 1.

  Lift the rear seat latch release handle.
- 2.

  Lower the rear seat backrest.

GFD72305

Courtesy of FORD MOTOR COMPANY

3.

If equipped with heated seats. Disconnect the heated seat electrical connector.

GFD72306

Courtesy of FORD MOTOR COMPANY

4.
- 1.

  Lower the backrest.
- 2.

  Rotate the backrest hinge locking arm rearward and release the backrest.
- 3.

  Remove the seat backrest.

GFD72307

Courtesy of FORD MOTOR COMPANY

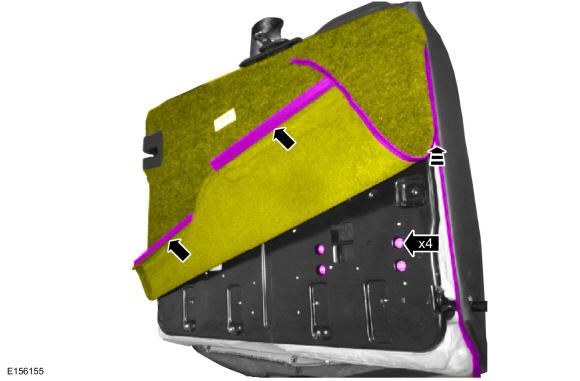

5.

Unzip the backrest cover, release the backrest cover J-clips and remove the bolts.
Torque

: 89 lb.in (10 Nm)

GFD72308

Courtesy of FORD MOTOR COMPANY

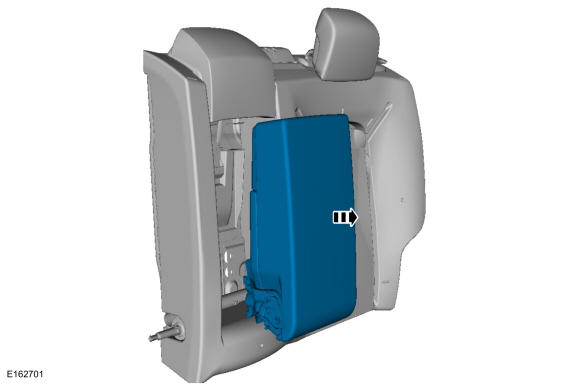

6.

Remove the rear seat armrest.

GFD72309

Courtesy of FORD MOTOR COMPANY
