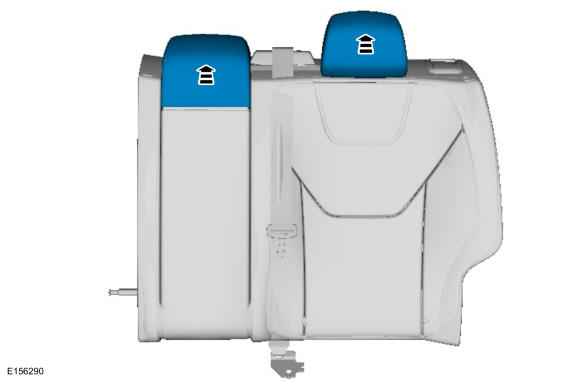

Rear Head Restraint Guide Sleeve: Removal

NOTE: 60 percent seat shown, 40 percent seat similar.

Courtesy of FORD MOTOR COMPANY

2.

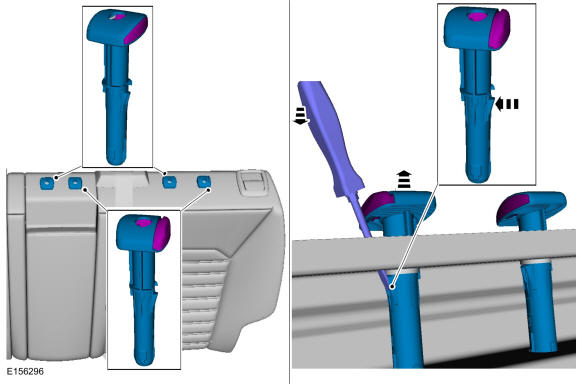

NOTE: Backrest trim cover removed for clarity.

Release the locking tabs and remove the rear head restraint guide sleeves. Use the General Equipment: Flat Headed Screw Driver

Courtesy of FORD MOTOR COMPANY
