Fuel Level Sender: Removal
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- 2.
Remove the Fuel Pump and Sender Unit. Refer to: Fuel Pump and Sender Unit .
- 3.

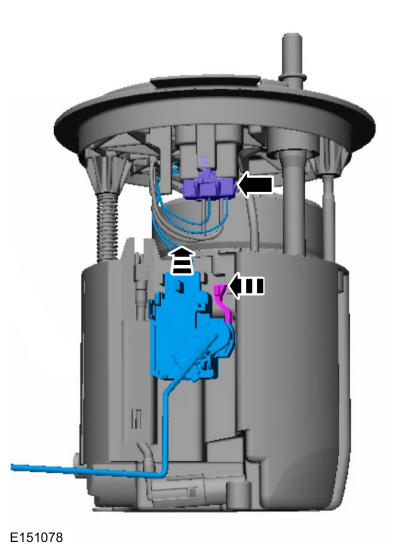

Disconnect the fuel level sender electrical connector, release the retainer tab and remove the fuel level sender.
