Fuel Tank Draining
WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Special Tool(s) / General Equipment
| 292-00004 Fuel Tanker 100 GPM | |
|---|---|
| 310-102 Fuel Draining Hose TKIT-2003A-F TKIT-2003A-FLM |
Draining
- 1.WARNING: Before beginning any service procedure in this service information, refer to Safety Warnings in GENERAL INFORMATION (EXCEPT HYBRID) . Failure to follow this instruction may result in serious personal injury.
Refer to: Gasoline and Gasoline-Ethanol Fuel Systems Health and Safety Precautions .
- 2.NOTE: Do not remove the hose clamp at the filler neck hose to fuel tank connection. The plastic tank is susceptible to damage with over torquing and or multiple re-torques.
- 3.
Disconnect the battery ground cable. Refer to: Battery Disconnect and Connect .

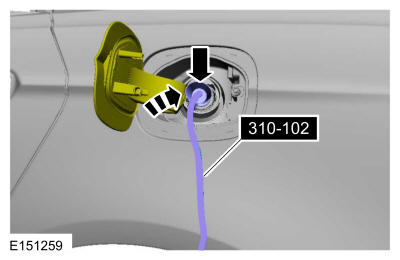

- 4.NOTE: The supplement refueling adapter is located in the luggage compartment. Install the supplemental refueling adapter and a length of semi-rigid fuel drain tube into the Easy Fuel™ (capless) fuel tank filler pipe. Push the drain tube to the bottom of the filler neck to open the flapper door at the fuel tank inlet.
- 5.
Attach the Fuel Storage Tanker to the fuel drain hose and drain as much fuel as possible from the Easy Fuel™ (capless) fuel tank filler pipe, lowering the fuel level below the fuel tank inlet spout.Use Special Service Tool: 310-102 Fuel Draining Hose, 292-00004 Fuel Tanker 100 GPM.
